TE0745-02-81C31-A
MOD SOM DDR3L 1GBManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

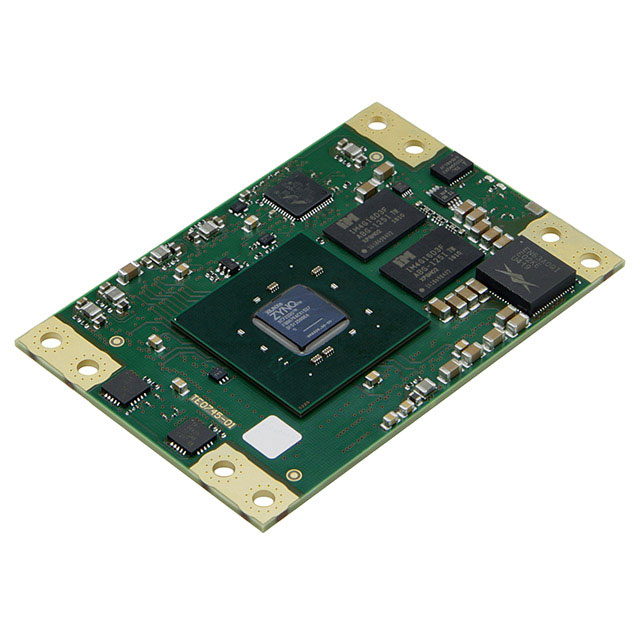

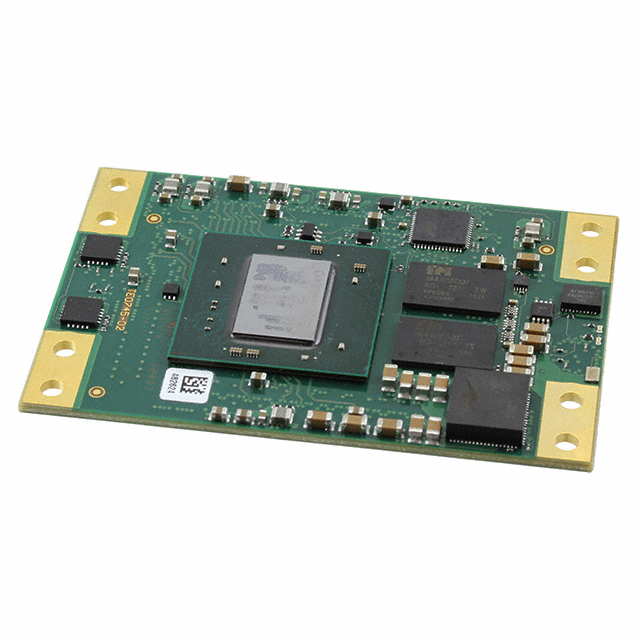

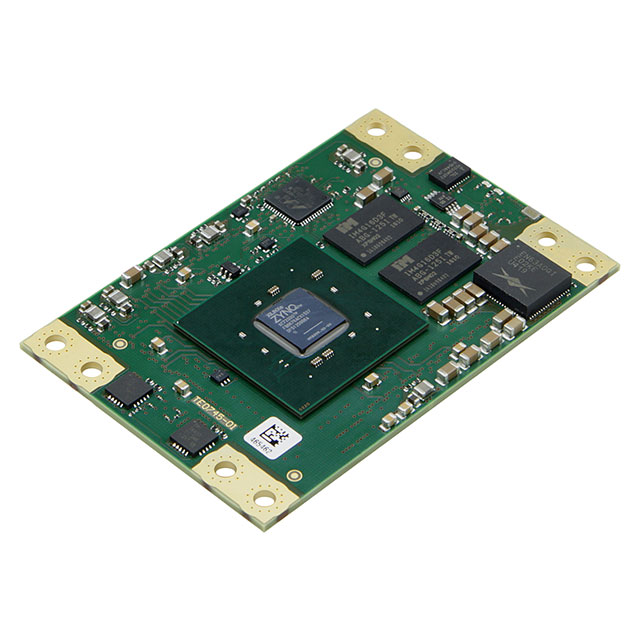

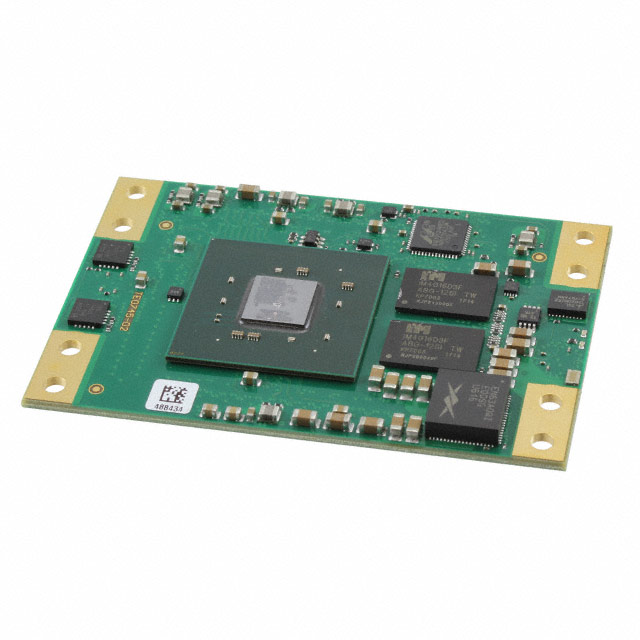

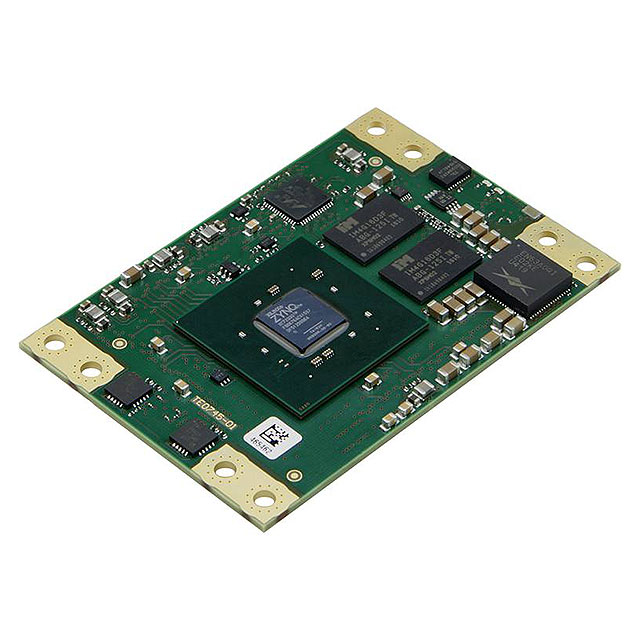

Trenz Electronic GmbH TE0745-02-81C31-A is a SOM (System on Module) featuring a Xilinx Zynq-7000 (Z-7035) SoC with an ARM Cortex-A9 core. This module provides 1Gb of DDR3L RAM and 64MB of flash memory, enabling high-performance embedded applications. The TE0745 series module utilizes a 160-pin board-to-board socket for system integration. Its compact footprint of 2.050" x 2.990" (52.00mm x 76.00mm) makes it suitable for space-constrained designs. Operating across an industrial temperature range of -40°C to 85°C, this module is designed for demanding applications in industrial automation, medical imaging, and aerospace.
Additional Information
Series: TE0745RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Board-to-Board (BTB) Socket - 160 |
| Size / Dimension | 2.050"" L x 2.990"" W (52.00mm x 76.00mm) |
| Speed | - |
| RAM Size | 1Gb |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MCU, FPGA |
| Core Processor | ARM Cortex-A9 |
| Co-Processor | Zynq-7000 (Z-7035) |
| Flash Size | 64MB |
