TE0745-02-81C11-A
SOM MIT XILINX ZYNQManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

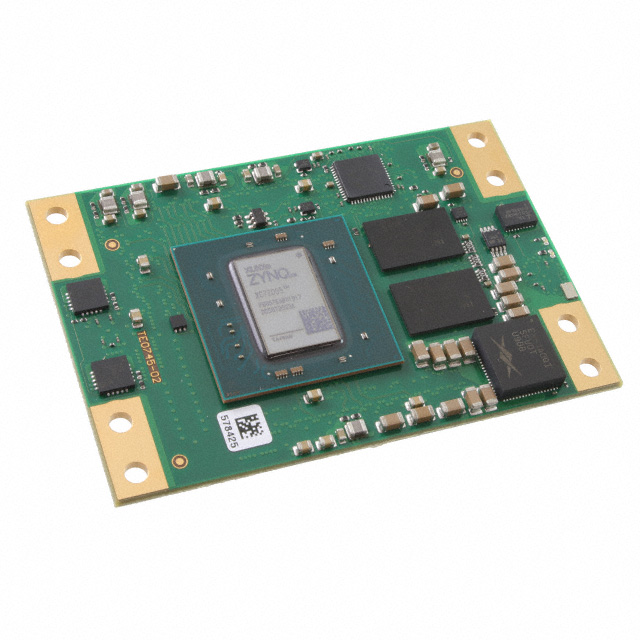

Trenz Electronic GmbH TE0745-02-81C11-A is a System-on-Module (SOM) featuring the Xilinx Zynq-7000 family, specifically the Z-7035 device. This embedded module integrates a dual-core ARM Cortex-A9 processor with a Xilinx Artix-7 based FPGA fabric, offering a powerful heterogeneous processing platform. It is equipped with 1Gb of DDR3 RAM and 32MB of flash memory for system boot and configuration. The TE0745 series module utilizes a Samtec ST5 connector for robust I/O and power delivery. Designed for industrial applications, this module operates across a wide temperature range of -40°C to 85°C. Its compact form factor, measuring 2.050" L x 2.990" W (52.00mm x 76.00mm), makes it suitable for space-constrained designs in sectors such as industrial automation, embedded vision, and high-performance computing.
Additional Information
Series: TE0745RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec ST5 |
| Size / Dimension | 2.050"" L x 2.990"" W (52.00mm x 76.00mm) |
| Speed | - |
| RAM Size | 1Gb |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MCU, FPGA |
| Core Processor | ARM® Cortex®-A9 |
| Co-Processor | Zynq-7000 (Z-7035) |
| Flash Size | 32MB |
