TE0745-02-30-1IA
IC MODULE CORTEX-A9 1GB 32MBManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

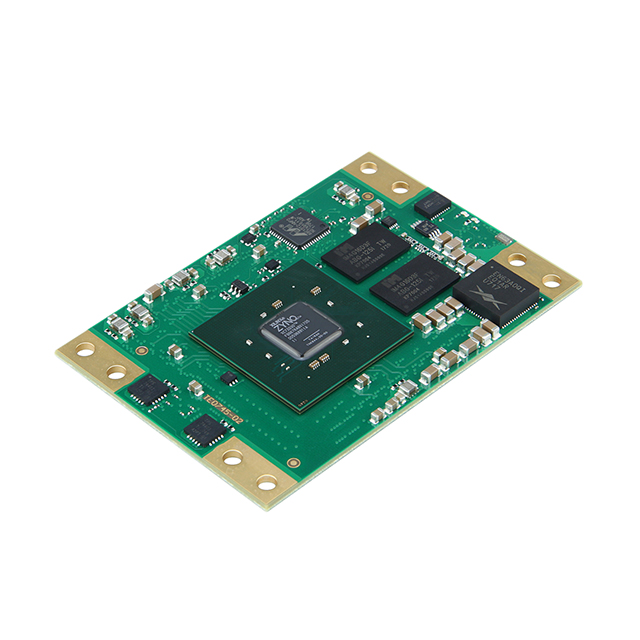

Trenz Electronic GmbH TE0745-02-30-1IA is an embedded module featuring the Xilinx Zynq-7000 (Z-7030) System-on-Chip. This module integrates an ARM Cortex-A9 dual-core processor with a Xilinx programmable logic array, offering a powerful heterogeneous processing platform. It is equipped with 1Gb DDR3 SDRAM for ample data handling and 32MB of SPI NOR Flash memory for boot and configuration storage. The module utilizes a Samtec UFPS connector interface for robust system integration. Its compact form factor, measuring 2.050" x 2.990" (52.00mm x 76.00mm), makes it suitable for space-constrained applications. The TE0745 series module operates within an industrial temperature range of -40°C to 85°C, ensuring reliability in demanding environments. This component finds application in industrial automation, medical imaging, and test and measurement equipment.
Additional Information
Series: TE0745RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec UFPS |
| Size / Dimension | 2.050"" L x 2.990"" W (52.00mm x 76.00mm) |
| RAM Size | 1Gb |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MCU, FPGA |
| Core Processor | ARM® Cortex®-A9 |
| Co-Processor | Zynq-7000 (Z-7030) |
| Flash Size | 32MB |
