TE0741-03-410-2CF
IC MOD KINTEX-7 410T 200MHZ 32MBManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

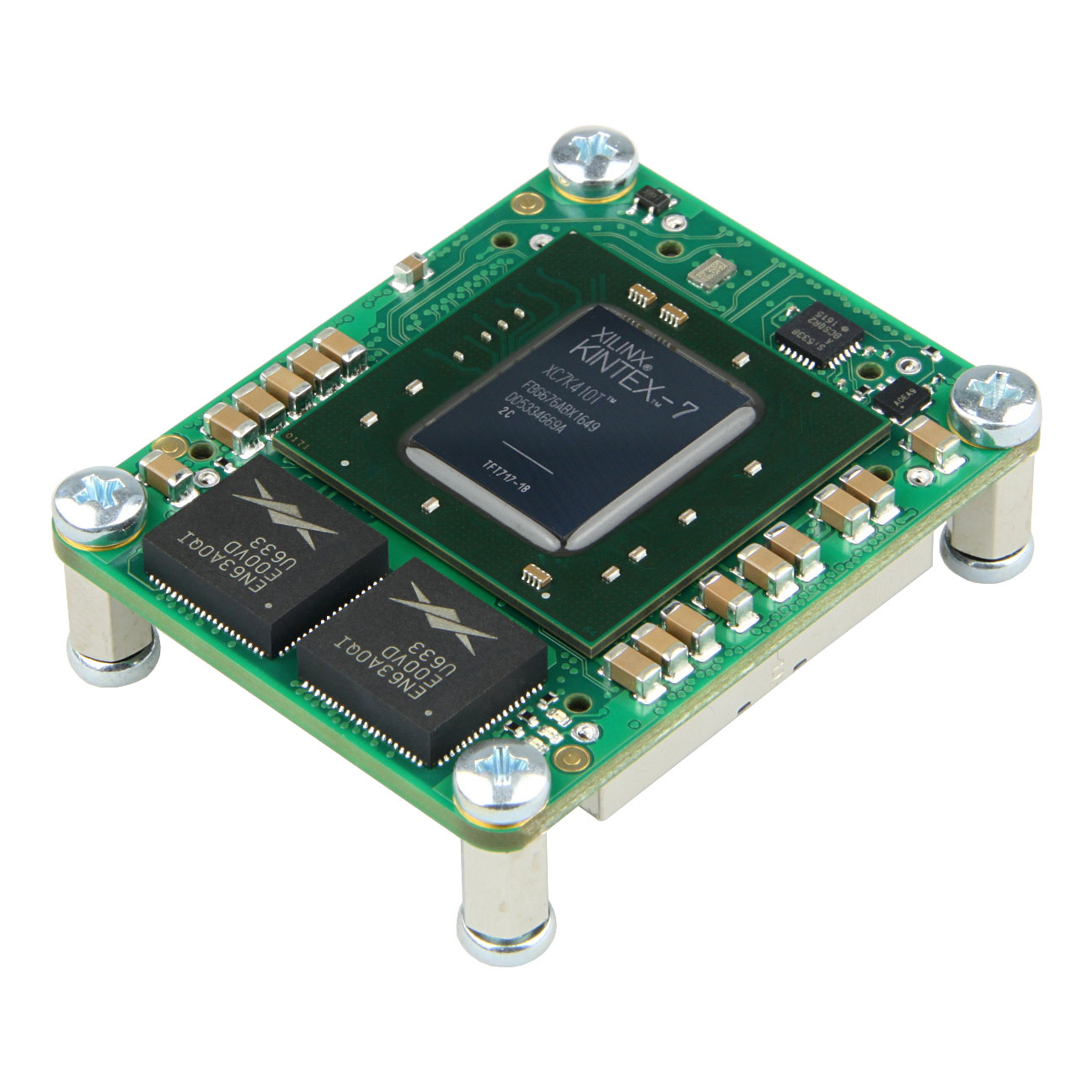

Trenz Electronic GmbH TE0741-03-410-2CF is a TE0741 series FPGA core module featuring the Xilinx Kintex-7 410T FPGA. This embedded module operates at 200MHz and is equipped with 32MB of flash memory. Designed for demanding applications, the TE0741-03-410-2CF utilizes a Samtec LSHM connector interface. Its compact form factor, measuring 1.970 inches by 1.570 inches (50.00mm x 40.00mm), makes it suitable for integration into space-constrained systems. The module operates within a temperature range of 0°C to 70°C. This component is commonly found in industrial automation, medical imaging, and high-frequency communication systems.
Additional Information
Series: TE0741RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec LSHM |
| Size / Dimension | 1.970"" L x 1.570"" W (50.00mm x 40.00mm) |
| Speed | 200MHz |
| RAM Size | - |
| Operating Temperature | 0°C ~ 70°C |
| Module/Board Type | FPGA Core |
| Core Processor | Kintex-7 410T |
| Co-Processor | - |
| Flash Size | 32MB |
