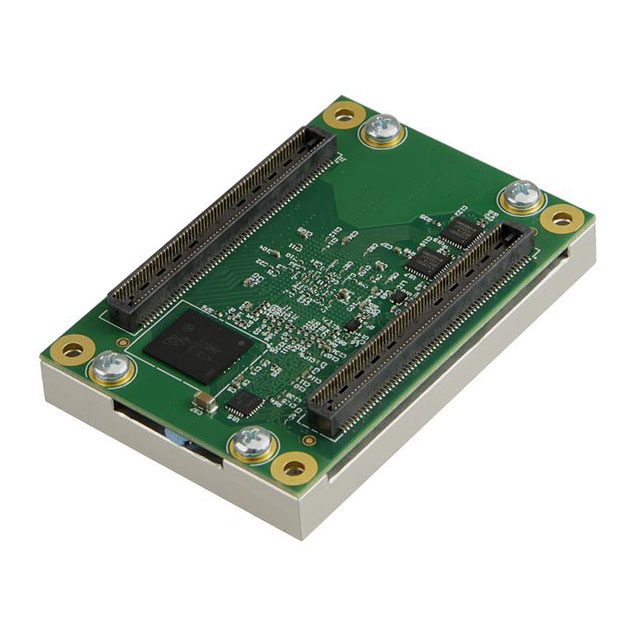

TE0729-02-2IF-K
IC MODULE CORTEX-A9 512MBManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More
Trenz Electronic GmbH TE0729-02-2IF-K is an embedded module featuring an ARM Cortex-A9 core processor. This module integrates a Xilinx Zynq-7000 (Z-7020) SoC, providing a powerful processing solution with a dedicated co-processor. It is equipped with 512MB of RAM for efficient data handling and 32MB of flash memory for program storage. Designed for robust operation, the module operates across a wide temperature range of -40°C to 85°C. The TE0729 series module utilizes a Samtec BTE connector for system integration. Its compact dimensions of 2.050" L x 2.990" W (52.00mm x 76.00mm) make it suitable for space-constrained applications. This component finds utility in industrial automation, medical devices, and communication systems.
Additional Information
Series: TE0729RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec BTE |
| Size / Dimension | 2.050"" L x 2.990"" W (52.00mm x 76.00mm) |
| RAM Size | 512MB |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MCU, FPGA |
| Core Processor | ARM Cortex-A9 |
| Co-Processor | Zynq-7000 (Z-7020) |
| Flash Size | 32MB |
Request a Quote
Clients Also Buy

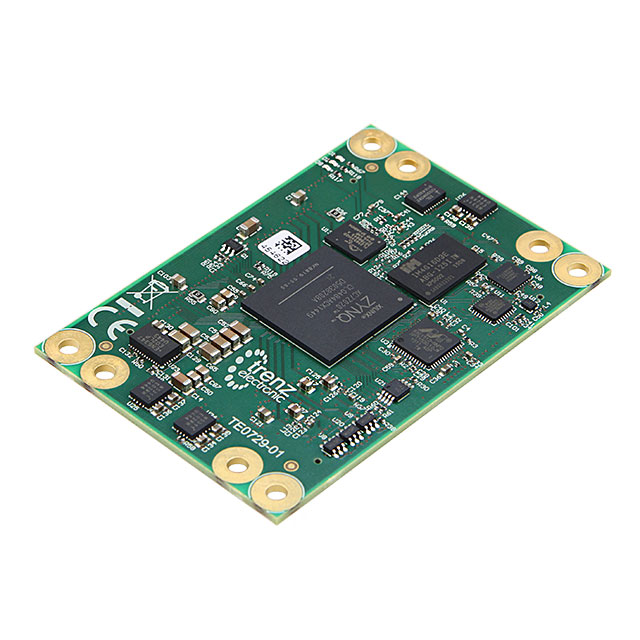

TE0729-02-2IF
