TE0720-03-62I33NA
IC SOC MODULE XILINX ZYNQManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

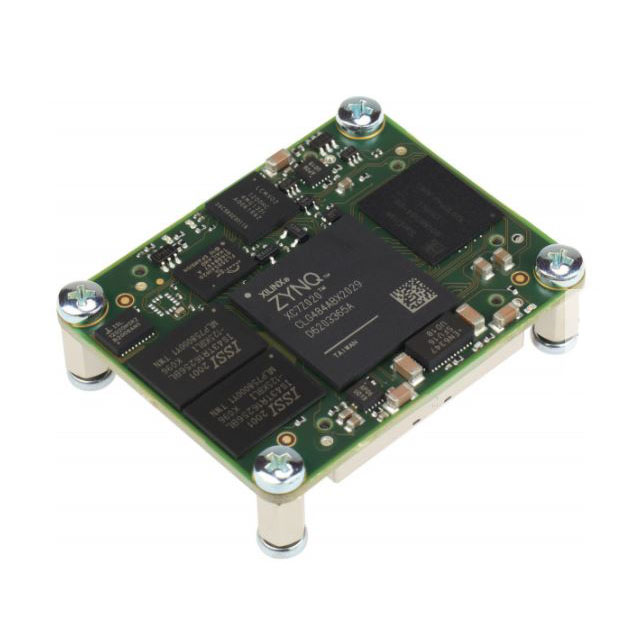

Trenz Electronic GmbH TE0720-03-62I33NA is an embedded module featuring the Xilinx Zynq-7000 (Z-7020) System-on-Chip. This module integrates dual ARM Cortex-A9 cores with a powerful Xilinx 7-series FPGA fabric, offering a flexible platform for complex processing and hardware acceleration. It is equipped with 1Gb of DDR3 RAM and 32GB of flash memory for program storage and data. The TE0720 series module utilizes a Samtec LSHM connector for robust I/O interfacing, with dimensions of 1.970" L x 1.570" W (50.00mm x 40.00mm). Operating within an industrial temperature range of 0°C to 70°C, this module is well-suited for applications in industrial automation, embedded vision, and telecommunications.
Additional Information
Series: TE0720RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec LSHM |
| Size / Dimension | 1.970"" L x 1.570"" W (50.00mm x 40.00mm) |
| Speed | - |
| RAM Size | 1Gb |
| Operating Temperature | 0°C ~ 70°C |
| Module/Board Type | MCU, FPGA |
| Core Processor | ARM Cortex-A9 |
| Co-Processor | Zynq-7000 (Z-7020) |
| Flash Size | 32GB |
