TE0720-03-61Q33ML
IC SOC MODULE XILINX ZYNQManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

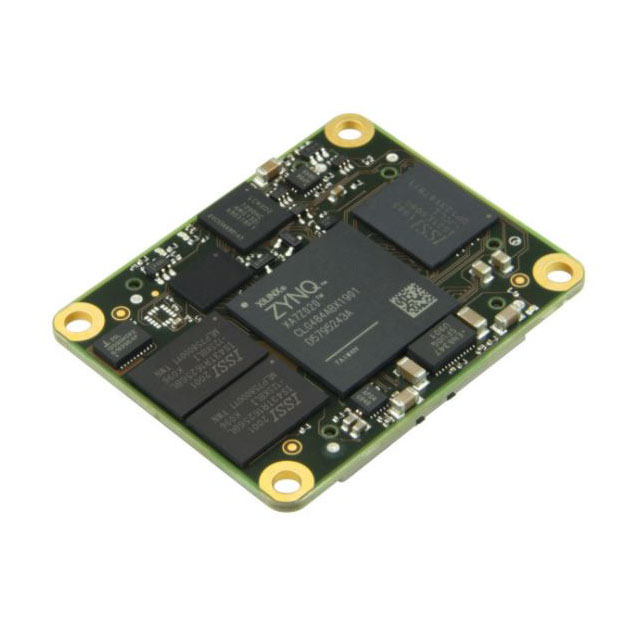

The Trenz Electronic GmbH TE0720-03-61Q33ML is a TE0720 series System-on-Chip (SoC) module featuring a Xilinx Zynq-7000 (Z-7020) co-processor. This embedded module integrates an ARM Cortex-A9 core processor with a comprehensive FPGA fabric, providing a flexible platform for complex processing and hardware acceleration tasks. Equipped with 1Gb of RAM and 8GB of flash memory, the TE0720-03-61Q33ML is designed for demanding applications. Its robust construction, including a Samtec LSHM connector, and an operating temperature range of -40°C to 85°C, make it suitable for deployment in industrial automation, medical devices, and high-performance computing environments. The module's dimensions are 1.970" L x 1.570" W (50.00mm x 40.00mm).
Additional Information
Series: TE0720RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec LSHM |
| Size / Dimension | 1.970"" L x 1.570"" W (50.00mm x 40.00mm) |
| Speed | - |
| RAM Size | 1Gb |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MCU, FPGA |
| Core Processor | ARM Cortex-A9 |
| Co-Processor | Zynq-7000 (Z-7020) |
| Flash Size | 8GB |
