TE0713-02-82C46-A
IC SOM ARTIX-7 FPGA DDR3Manufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

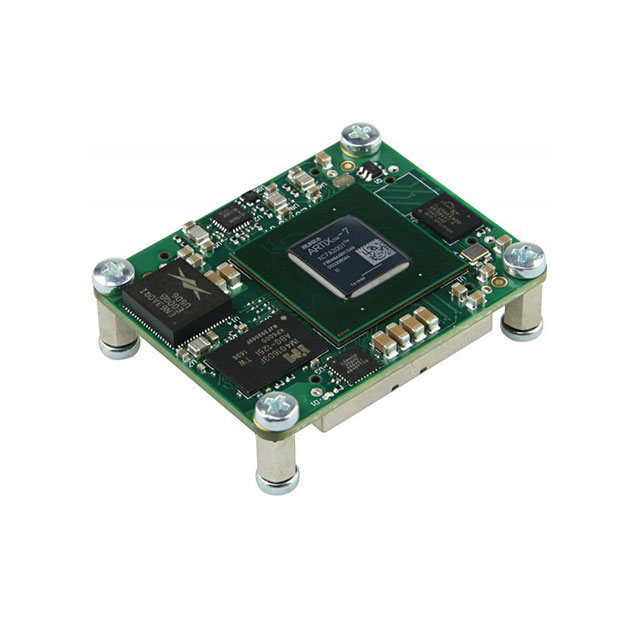

Trenz Electronic GmbH TE0713-02-82C46-A is an Artix-7 FPGA System-on-Module (SOM) featuring the Xilinx Artix-7 XC7A200T-2FBG484C device. This embedded module operates at a 200MHz clock speed and is equipped with 1Gb of DDR3 RAM and 32MB of flash memory. Its compact form factor measures 1.970" L x 1.570" W (50.00mm x 40.00mm) and utilizes a B2B connector for system integration. The TE0713-02-82C46-A is designed for industrial applications and operates within a temperature range of 0°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | B2B |
| Size / Dimension | 1.970"" L x 1.570"" W (50.00mm x 40.00mm) |
| Speed | 200MHz |
| RAM Size | 1Gb |
| Operating Temperature | 0°C ~ 85°C |
| Module/Board Type | FPGA Core |
| Core Processor | Artix-7 XC7A200T-2FBG484C |
| Co-Processor | - |
| Flash Size | 32MB |
