TE0712-02-72C36-A
FPGA MODULE ARTIX7Manufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

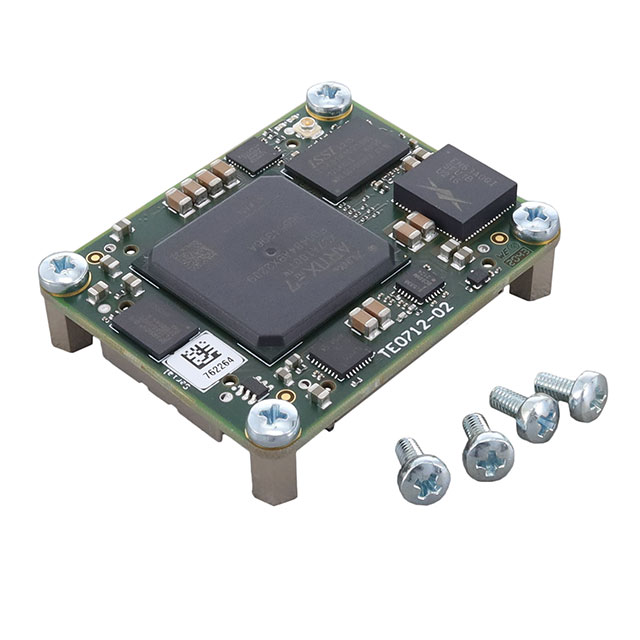

The Trenz Electronic GmbH TE0712-02-72C36-A is a high-performance Artix-7 A100T FPGA module designed for demanding embedded applications. This module features the Artix-7 A100T FPGA, clocking at 200MHz, and is equipped with 1Gb of RAM for extensive data processing capabilities. On-board 32MB of flash memory provides ample space for configuration data.
The TE0712 series module utilizes Samtec LSHM connectors, ensuring robust and reliable connections. Its compact form factor, measuring 1.970" L x 1.570" W (50.00mm x 40.00mm), makes it suitable for space-constrained designs. Operating within a temperature range of 0°C to 85°C, this component is engineered for reliability in industrial and commercial environments. Applications span industrial automation, medical imaging, and telecommunications.
Additional Information
Series: TE0712RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec LSHM |
| Size / Dimension | 1.970"" L x 1.570"" W (50.00mm x 40.00mm) |
| Speed | 200MHz |
| RAM Size | 1Gb |
| Operating Temperature | 0°C ~ 85°C |
| Module/Board Type | FPGA Core |
| Core Processor | Artix-7 A100T |
| Co-Processor | - |
| Flash Size | 32MB |
