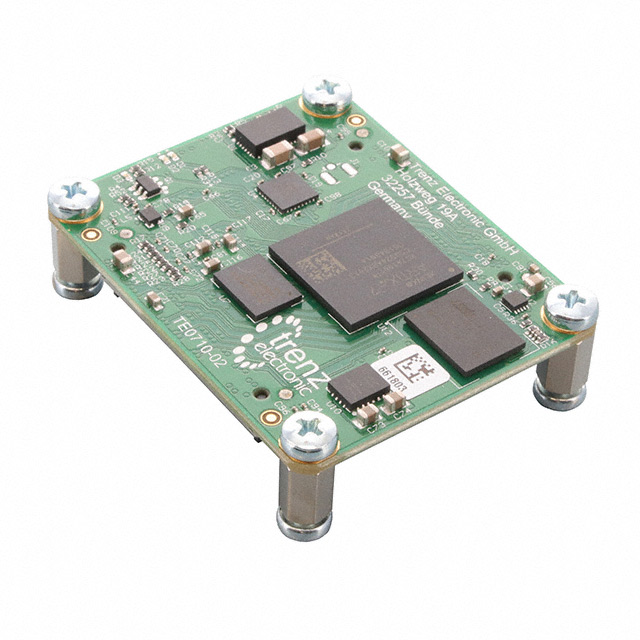

TE0710-02-72I21-A
MOD FPGA ARTIX7 100T 512MB 78BGAManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More
The Trenz Electronic GmbH TE0710-02-72I21-A is an Artix-7 A100T FPGA core module, part of the TE0710 series. This embedded module features a Xilinx Artix-7 A100T FPGA, operating at 100MHz, and is equipped with 512MB of DDR3 SDRAM and 32MB of SPI flash memory. The module utilizes a Samtec LSHM connector for interfacing and has dimensions of 50.00mm x 40.00mm. It is designed for industrial operating temperatures ranging from -40°C to 85°C. Applications for this module include industrial automation, embedded vision, and communications infrastructure.
Additional Information
Series: TE0710RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec LSHM |
| Size / Dimension | 1.970"" L x 1.570"" W (50.00mm x 40.00mm) |
| Speed | 100MHz |
| RAM Size | 512MB |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | FPGA Core |
| Core Processor | Artix-7 A100T |
| Co-Processor | - |
| Flash Size | 32MB |
