TE0600-03BM
IC MODULE LX100 125MHZ 1GB 16MBManufacturer: Trenz Electronic GmbH
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More
Trenz Electronic GmbH TE0600-03BM is an FPGA core module based on the Xilinx Spartan-6 LX-100 device. This module operates at a 125MHz clock speed and features 1Gb of RAM and 16MB of Flash memory. Designed for embedded applications, the TE0600 series module utilizes a Samtec LSHM connector for high-density interfacing. Its compact form factor, measuring 1.970" L x 1.570" W (50.00mm x 40.00mm), makes it suitable for space-constrained designs. The operating temperature range is 0°C to 70°C. This component is commonly employed in industrial automation, telecommunications, and medical equipment sectors.
Additional Information
Series: TE0600RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Samtec LSHM |
| Size / Dimension | 1.970"" L x 1.570"" W (50.00mm x 40.00mm) |
| Speed | 125MHz |
| RAM Size | 1Gb |
| Operating Temperature | 0°C ~ 70°C |
| Module/Board Type | FPGA Core |
| Core Processor | Spartan-6 LX-100 |
| Co-Processor | - |
| Flash Size | 16MB |
Request a Quote
Clients Also Buy

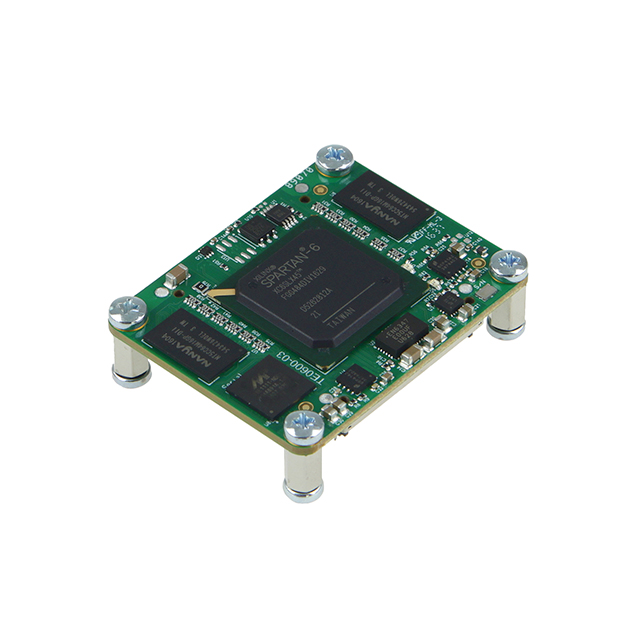

TE0600-03IVFN
IC MOD LX150 125MHZ 256MB

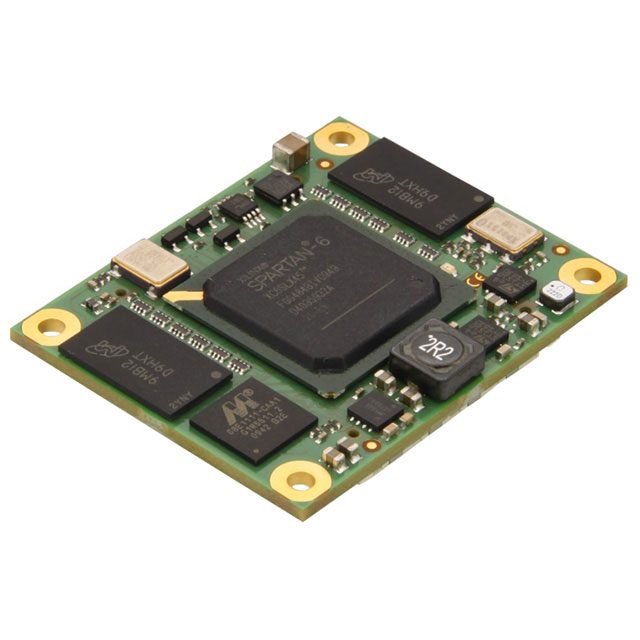

TE0600-02B
