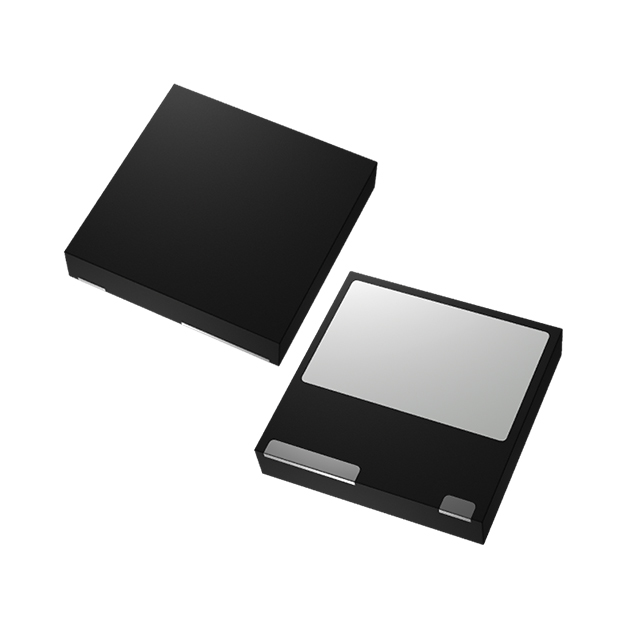

TPH3206LS
GANFET N-CH 600V 17A PQFNManufacturer: Transphorm
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Transphorm GaNFET N-Channel TPH3206LS, a 600V device, delivers 17A continuous drain current at 25°C with a maximum power dissipation of 96W. This surface mount component features an Rds(on) of 180mOhm at 11A and 8V. Designed for high-efficiency power conversion, it is suitable for applications including server power, industrial power supplies, and electric vehicle charging. The TPH3206LS is packaged in a 3-PQFN (8x8) with a junction temperature range of -55°C to 175°C. Key parameters include a gate charge (Qg) of 9.3 nC at 4.5V and input capacitance (Ciss) of 760 pF at 480V, with a maximum Vgs of ±18V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 3-PowerDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 11A, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 96W (Tc) |
| Vgs(th) (Max) @ Id | 2.6V @ 500µA |
| Supplier Device Package | 3-PQFN (8x8) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±18V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 480 V |
