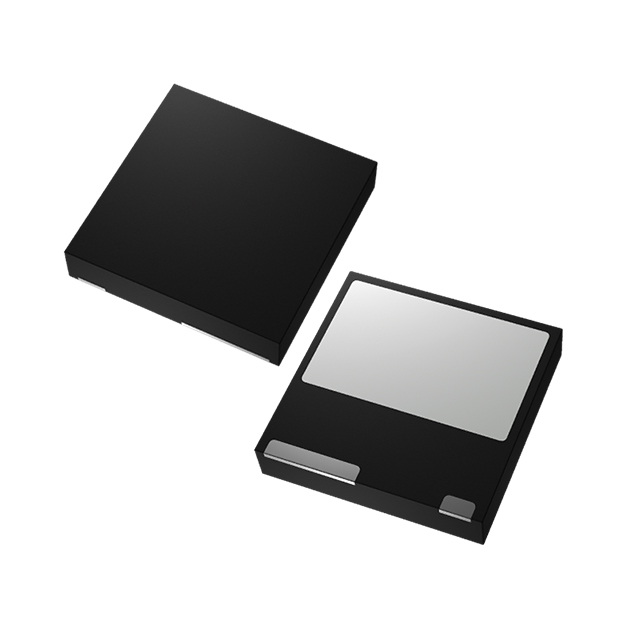

TPH3202LS
GANFET N-CH 600V 9A 3PQFNManufacturer: Transphorm
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Transphorm TPH3202LS is a 600V N-Channel GaNFET designed for high-performance power conversion applications. This device features a low on-resistance of 350mOhm at 5.5A and 8V Vgs, enabling efficient operation. With a continuous drain current capability of 9A (Tc) and a maximum power dissipation of 65W (Tc), it is suitable for demanding power management tasks. The TPH3202LS utilizes a 3-PQFN (8x8) surface mount package, offering excellent thermal performance and ease of integration. Key parameters include a gate charge (Qg) of 9.3 nC at 4.5V and an input capacitance (Ciss) of 760 pF at 480V. Operating across a temperature range of -55°C to 175°C (TJ), this GaNFET is ideal for use in power supplies, electric vehicle charging, and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 3-PowerDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Rds On (Max) @ Id, Vgs | 350mOhm @ 5.5A, 8V |
| FET Feature | - |
| Power Dissipation (Max) | 65W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 3-PQFN (8x8) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±18V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 480 V |
