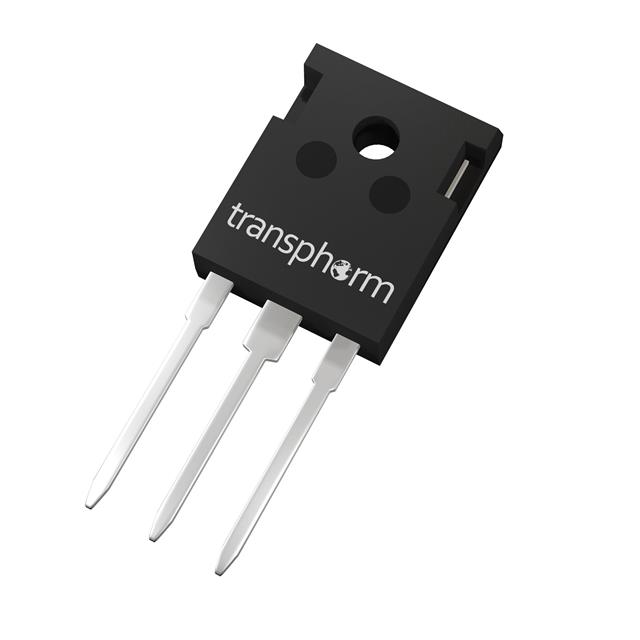

TP65H050G4WS
650 V 34 A GAN FETManufacturer: Transphorm
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 34A (Tc) 119W (Tc) Through Hole TO-247-3
Additional Information
Series: SuperGaN®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 22A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 119W (Tc) |
| Vgs(th) (Max) @ Id | 4.8V @ 700µA |
| Supplier Device Package | TO-247-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 400 V |
Request a Quote
Clients Also Buy
TP65H150G4PS
GAN FET N-CH 650V TO-220

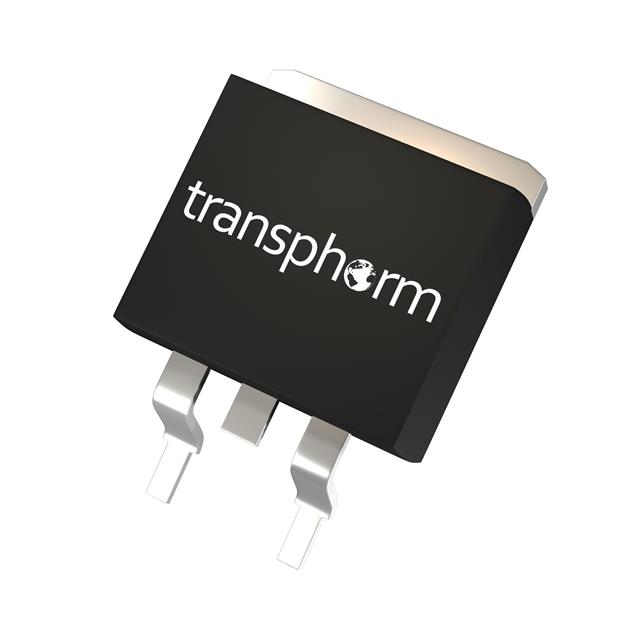

TP65H050G4BS
