8473.22.5430.05.19.58.40.61.T2
SENSOR 15PSIA 9VManufacturer: Trafag Sensors and Controls
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

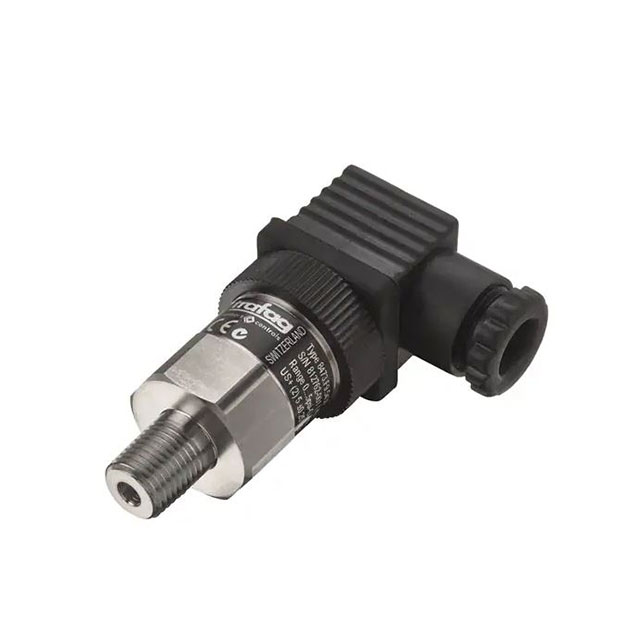

Pressure Sensor -14.5PSI ~ 15PSI (-100kPa ~ 103.42kPa) Absolute 9V Cylinder, Threaded
Additional Information
Series: ECT 8473RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Cylinder, Threaded |
| Output Type | - |
| Output | 9V |
| Operating Pressure | -14.5PSI ~ 15PSI (-100kPa ~ 103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.5% |
| Operating Temperature | -25°C ~ 125°C |
| Termination Style | Connector |
| Voltage - Supply | 9V ~ 30V |
| Port Size | - |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | - |
