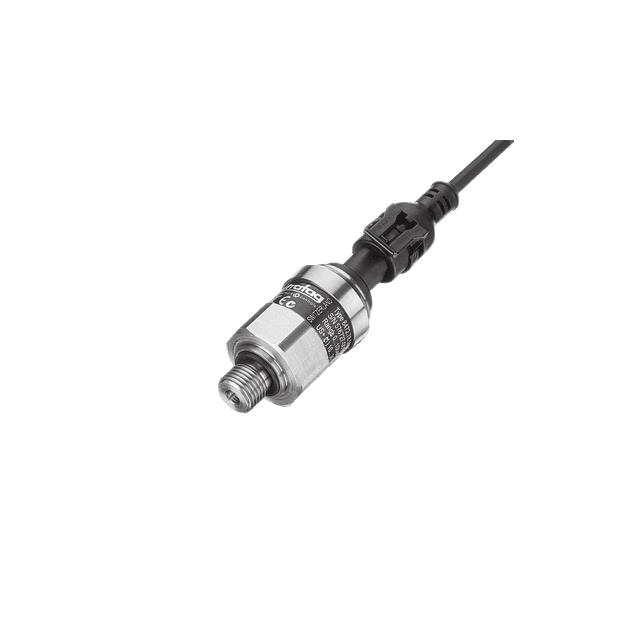

8473.21.5430.22.19.19.61.1M.T2.01
SENSOR 14.5PSIG 1/4""NPT .02AManufacturer: Trafag Sensors and Controls
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) Gauge Male - 1/4"" (6.35mm) NPT 4 ~ 20 mA
Additional Information
Series: ECT 8473RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Output Type | Analog Current |
| Output | 4 ~ 20 mA |
| Operating Pressure | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.3% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 9V ~ 30V |
| Port Size | Male - 1/4"" (6.35mm) NPT |
| Port Style | Threaded |
| Maximum Pressure | 60PSI (413.69kPa) |
