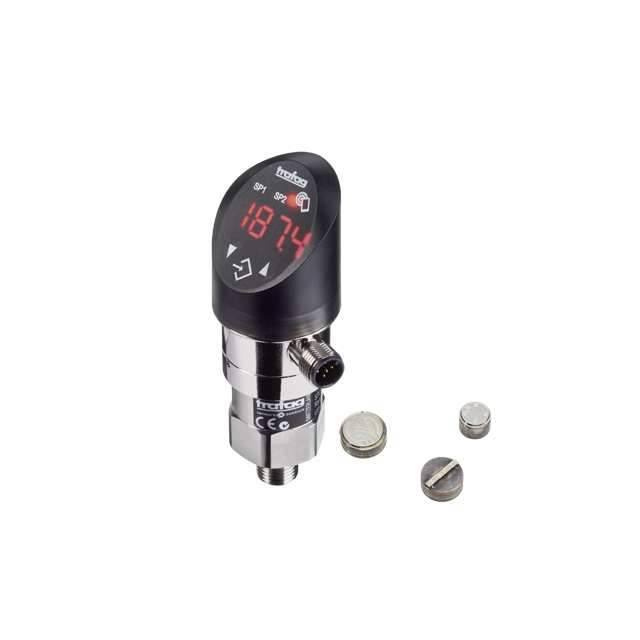

8381.H6.2530.35.PA.P1.44.ZS.Z1.Z2
SENSOR 7500PSIG 1/4""NPT 10VManufacturer: Trafag Sensors and Controls
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 7500PSI (51710.68kPa) Gauge Male - 1/4"" (6.35mm) NPT 4mA ~ 20mA, 0V ~ 10V Cylinder, Metal
Additional Information
Series: DPS 8381RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Cylinder, Metal |
| Output Type | Analog Current/Voltage, PNP - Open Collector |
| Output | 4mA ~ 20mA, 0V ~ 10V |
| Operating Pressure | 7500PSI (51710.68kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | M12x1, 5 Pin |
| Voltage - Supply | 15V ~ 30V |
| Port Size | Male - 1/4"" (6.35mm) NPT |
| Applications | - |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 18750PSI (129276.7kPa) |
Request a Quote
