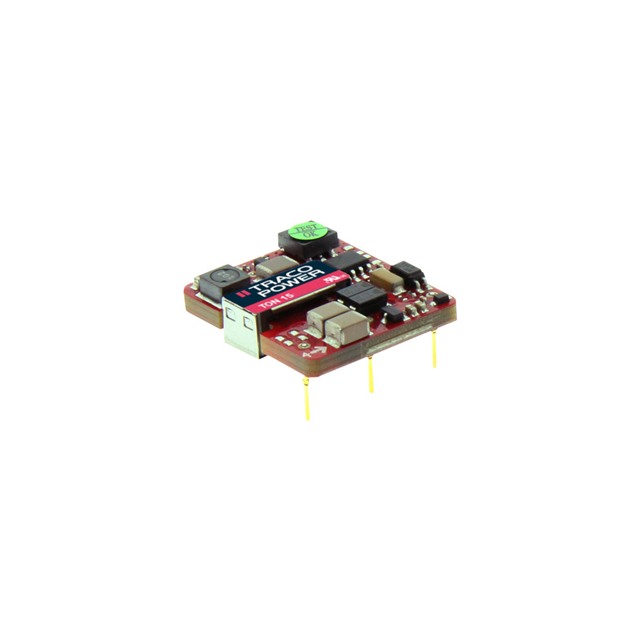

TON 15-2412
DC DC CONVERTER 12V 15WManufacturer: Traco Power
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 1 Output 12V 1.25A 18V - 36V Input
Additional Information
Series: TON 15 (15W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Packaging | Tray |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.10"" L x 0.94"" W x 0.33"" H (27.9mm x 23.9mm x 8.5mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | 87% |
| Current - Output (Max) | 1.25A |
| Supplier Device Package | - |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Power (Watts) | 15 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 2.25 kV |
