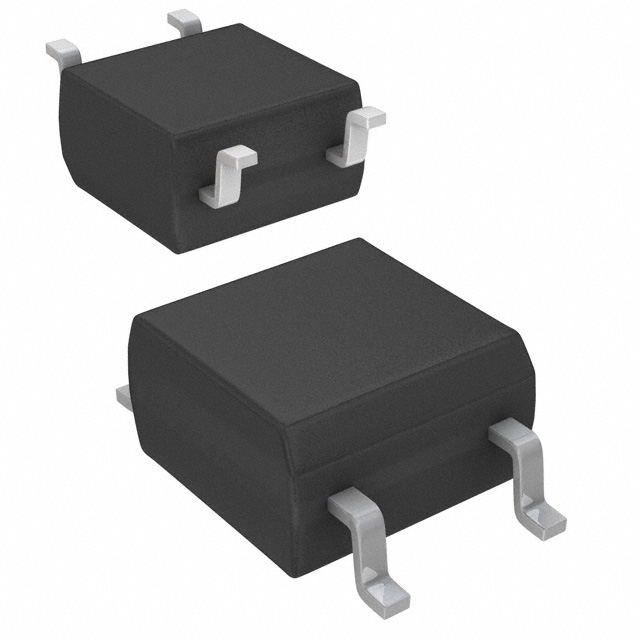

TLP185(GR-TPR,E)
OPTOISO 3.75KV TRANS 6-SO 4 LEADManufacturer: Toshiba Semiconductor and Storage
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 3750Vrms 1 Channel 6-SOP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SOIC (0.173"", 4.40mm Width), 4 Leads |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Max) | 300% @ 5mA |
| Supplier Device Package | 6-SOP |
| Voltage - Output (Max) | 80V |
| Turn On / Turn Off Time (Typ) | 9µs, 9µs |
| Rise / Fall Time (Typ) | 5µs, 9µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
Request a Quote
Clients Also Buy
TLP293(GB-TPL,E
OPTOISOLATOR 3.75KV TRANS 4-SO

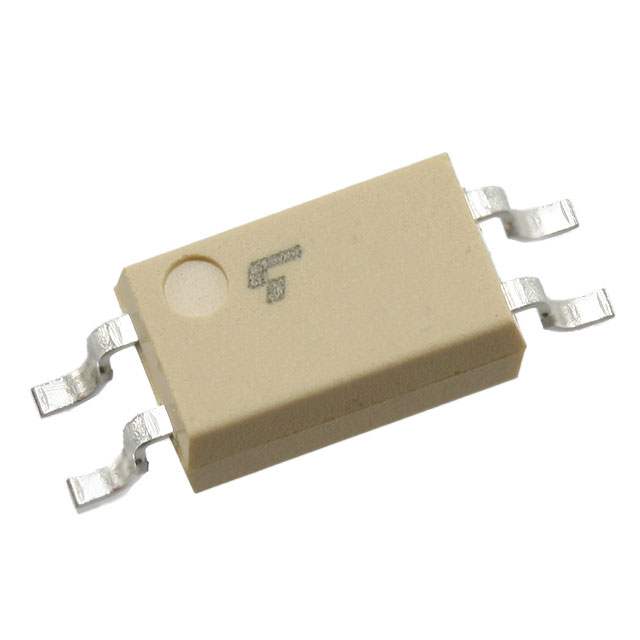

TLP291(GRL-TP,SE
