TLP184(TPR,E)

Banner
productimage

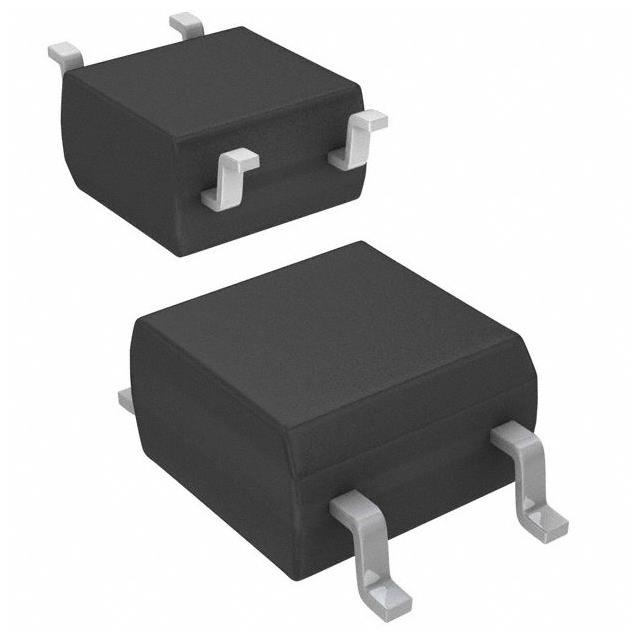

TLP184(TPR,E)

OPTOISO 3.75KV 1CH TRANS 6-SOP

Manufacturer: Toshiba Semiconductor and Storage

Categories: Transistor, Photovoltaic Output Optoisolators

Quality Control: Learn More

Optoisolator Transistor Output 3750Vrms 1 Channel 6-SOP

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52Product Status: ObsoletePackaging: Tape & Reel (TR)
Technical Details:
Package / Case6-SOIC (0.173"", 4.40mm Width), 4 Leads
Output TypeTransistor
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)1.25V
Input TypeAC, DC
Current - Output / Channel50mA
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 5mA
Vce Saturation (Max)300mV
Current Transfer Ratio (Max)400% @ 5mA
Supplier Device Package6-SOP
Voltage - Output (Max)80V
Turn On / Turn Off Time (Typ)9µs, 9µs
Rise / Fall Time (Typ)5µs, 9µs
Number of Channels1
Current - DC Forward (If) (Max)50 mA
