XPN12006NC,L1XHQ
MOSFET N-CH 60V 20A 8TSONManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More

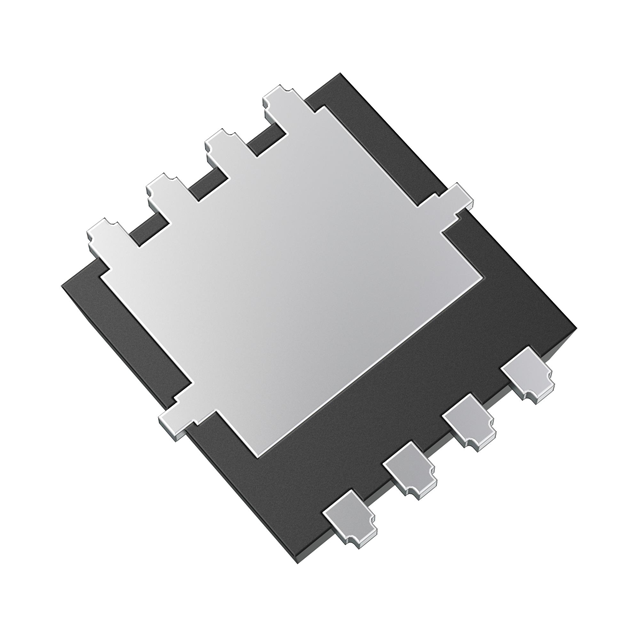

N-Channel 60 V 20A 65W (Tc) Surface Mount 8-TSON Advance-WF (3.1x3.1)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 10A, 10V |
| Power Dissipation (Max) | 65W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 200µA |
| Supplier Device Package | 8-TSON Advance-WF (3.1x3.1) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1100 pF @ 10 V |
| Qualification | AEC-Q101 |
Request a Quote
