TPN6R303NC,LQ
MOSFET N CH 30V 20A 8TSON-ADVManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 20A (Ta) 700mW (Ta), 19W (Tc) Surface Mount 8-TSON Advance (3.1x3.1)
Additional Information
Series: U-MOSVIIIRoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) |
| Rds On (Max) @ Id, Vgs | 6.3mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta), 19W (Tc) |
| Vgs(th) (Max) @ Id | 2.3V @ 200µA |
| Supplier Device Package | 8-TSON Advance (3.1x3.1) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1370 pF @ 15 V |
Request a Quote
Clients Also Buy

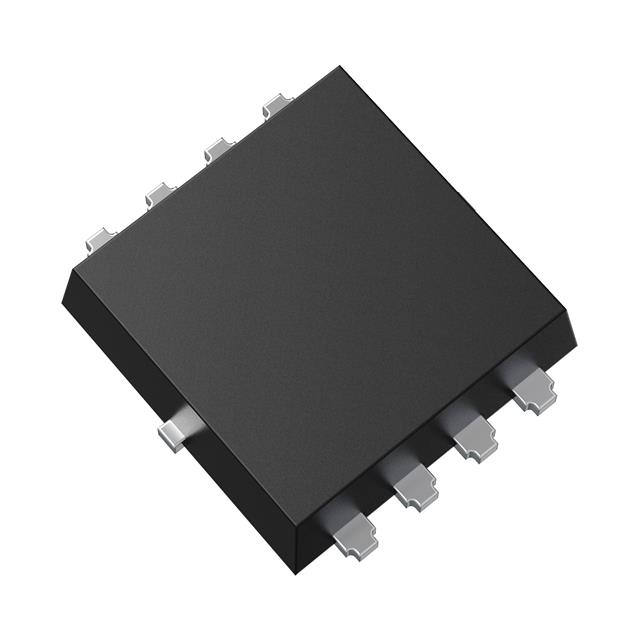

XPN3R804NC,L1XHQ
