TPH9R00CQ5,LQ
150V U-MOS X-H SOP-ADVANCE(N) 9MManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 150 V 64A (Tc) 210W (Tc) Surface Mount 8-SOP Advance (5x5)
Additional Information
Series: U-MOSX-HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 64A (Tc) |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 32A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 210W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 1mA |
| Supplier Device Package | 8-SOP Advance (5x5) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5400 pF @ 75 V |
Request a Quote
Clients Also Buy
TPH2R408QM,L1Q
MOSFET N-CH 80V 120A 8SOP

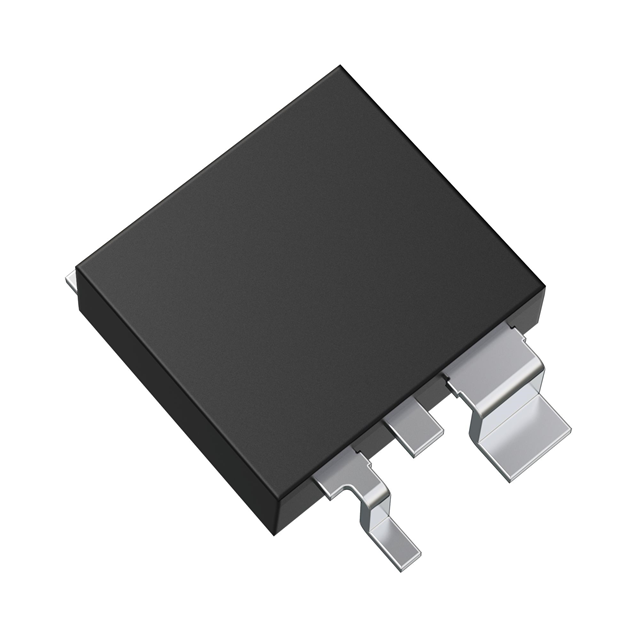

XK1R9F10QB,LXGQ
