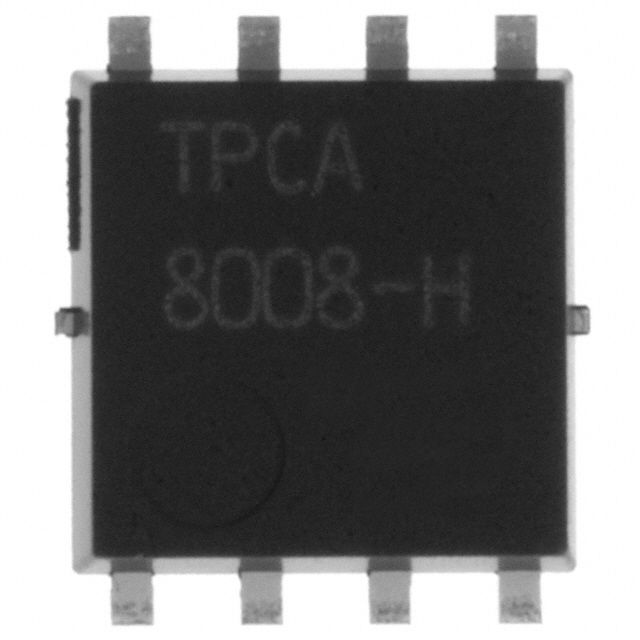

TPCA8008-H(TE12L,Q
MOSFET N-CH 250V 4A 8SOPManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Toshiba Semiconductor and Storage TPCA8008-H-TE12L-Q is an N-Channel MOSFET designed for surface mount applications. This device features a drain-source voltage (Vdss) of 250V and a continuous drain current (Id) of 4A at 25°C (Ta). With a maximum on-resistance (Rds On) of 580mOhm at 2A and 10V, it offers efficient power switching. The TPCA8008-H-TE12L-Q is housed in an 8-SOP Advance (5x5) package and operates at a maximum junction temperature of 150°C. Power dissipation is rated at 1.6W (Ta) and 45W (Tc). This component is commonly utilized in industrial and automotive power management applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 580mOhm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta), 45W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | 8-SOP Advance (5x5) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 250 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 10 V |
