TK5R3A06PL,S4X
X35 PB-F POWER MOSFET TRANSISTORManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 56A (Tc) 36W (Tc) Through Hole TO-220SIS
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 56A (Tc) |
| Rds On (Max) @ Id, Vgs | 5.3mOhm @ 28A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 36W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 300µA |
| Supplier Device Package | TO-220SIS |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2380 pF @ 30 V |
Request a Quote
Clients Also Buy

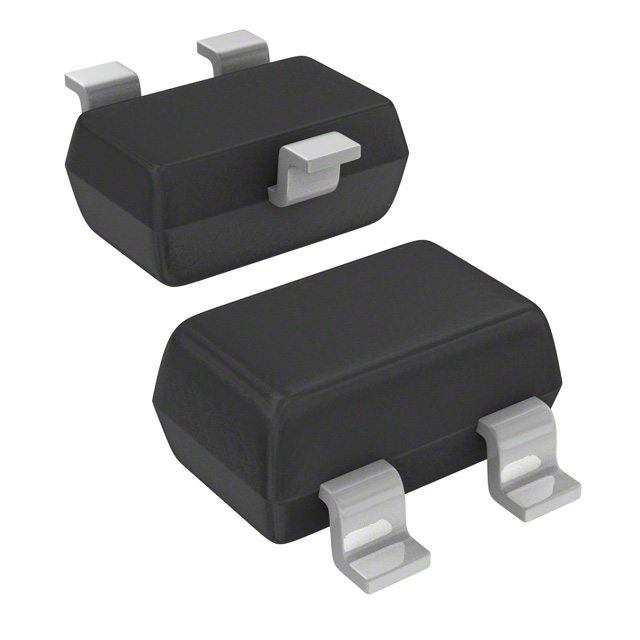

SSM3K15AFU,LF
MOSFET N-CH 30V 100MA USM

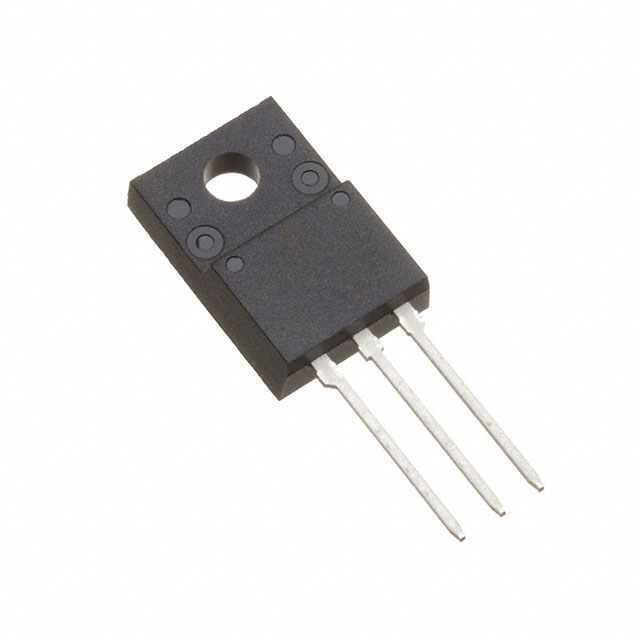

TK6R7A10PL,S4X
X35 PB-F POWER MOSFET TRANSISTOR

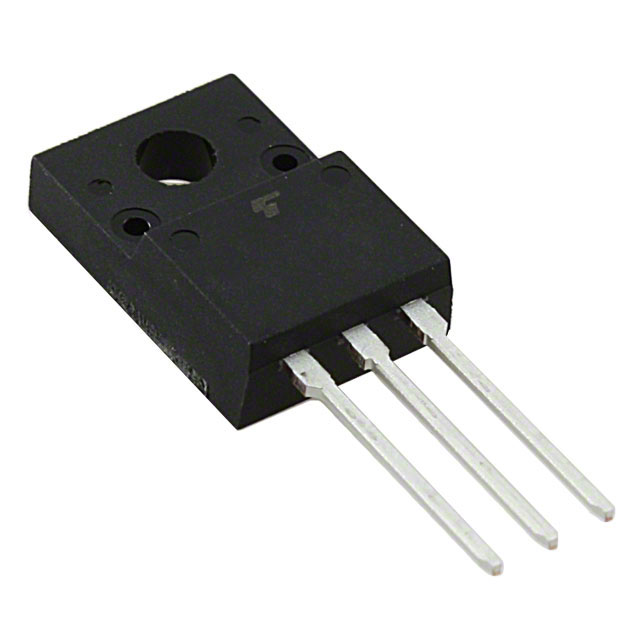

TK6A53D(STA4,Q,M)
