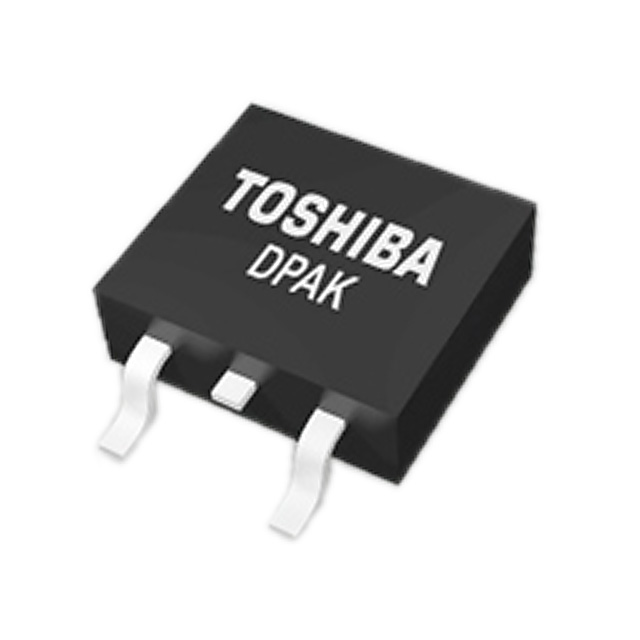

TK3R1P04PL,RQ
MOSFET N-CHANNEL 40V 58A DPAKManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 58A (Tc) 87W (Tc) Surface Mount DPAK
Additional Information
Series: U-MOSIX-HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 58A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 29A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 87W (Tc) |
| Vgs(th) (Max) @ Id | 2.4V @ 500µA |
| Supplier Device Package | DPAK |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4670 pF @ 20 V |
