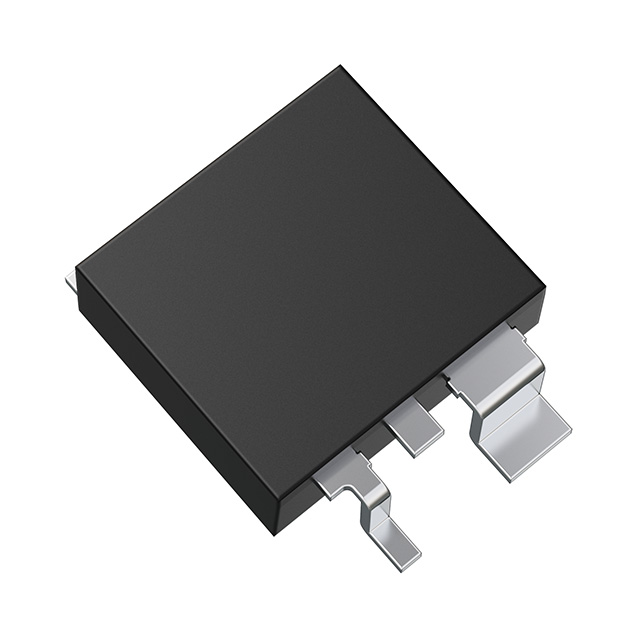

TK33S10N1Z,LXHQ
MOSFET N-CH 100V 33A DPAKManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 33A (Ta) 125W (Tc) Surface Mount DPAK+
Additional Information
Series: U-MOSVIII-HRoHS Status: unknownManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 33A (Ta) |
| Rds On (Max) @ Id, Vgs | 9.7mOhm @ 16.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 500µA |
| Supplier Device Package | DPAK+ |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2050 pF @ 10 V |
