TK1P90A,LQ(CO
MOSFET N-CH 900V 1A PW-MOLDManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More

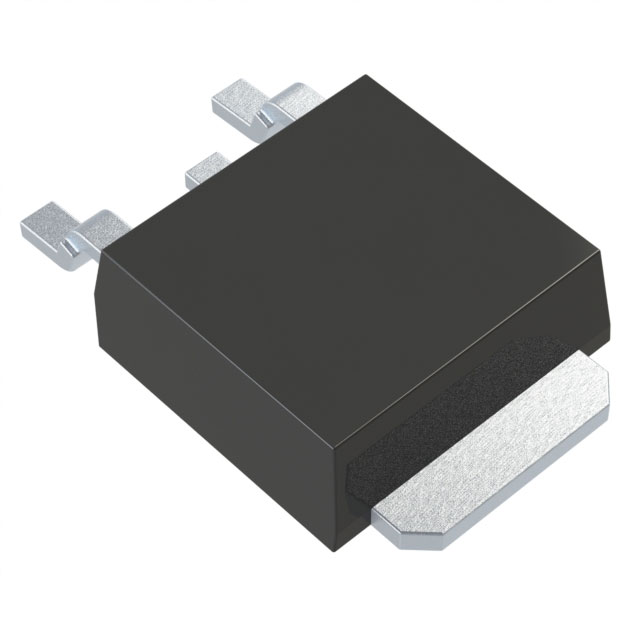

N-Channel 900 V 1A (Ta) 20W (Tc) Surface Mount PW-MOLD
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Rds On (Max) @ Id, Vgs | 9Ohm @ 500mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 20W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | PW-MOLD |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 900 V |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 320 pF @ 25 V |
