TK110P10PL,RQ
X35 PB-F POWER MOSFET TRANSISTORManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 40A (Tc) 75W (Tc) Surface Mount DPAK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |

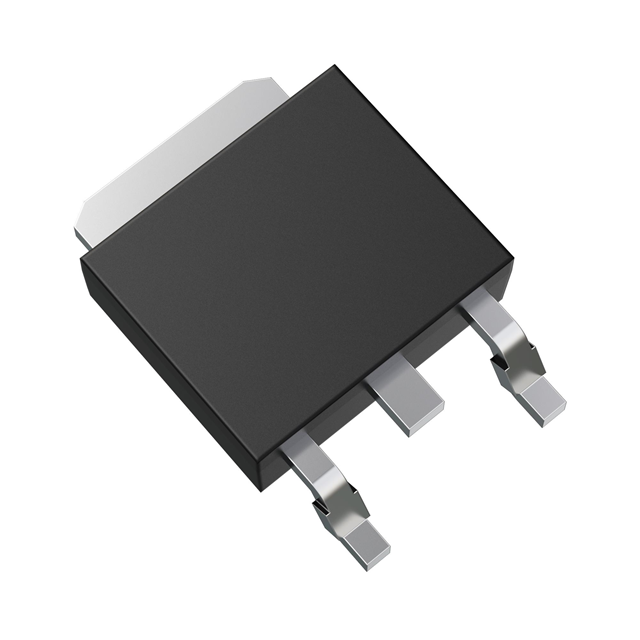

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 10.6mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 75W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 300µA |
| Supplier Device Package | DPAK |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2040 pF @ 50 V |
