TK100E10N1,S1X
MOSFET N-CH 100V 100A TO220Manufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More

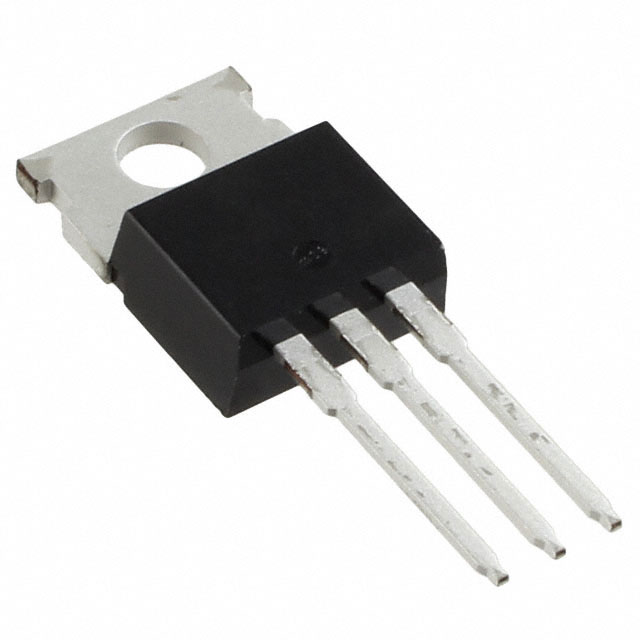

N-Channel 100 V 100A (Ta) 255W (Tc) Through Hole TO-220
Additional Information
Series: U-MOSVIII-HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 255W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | TO-220 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 140 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8800 pF @ 50 V |
