SSM6K518NU,LF
MOSFET N-CH 20V 6A 6UDFNBManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More

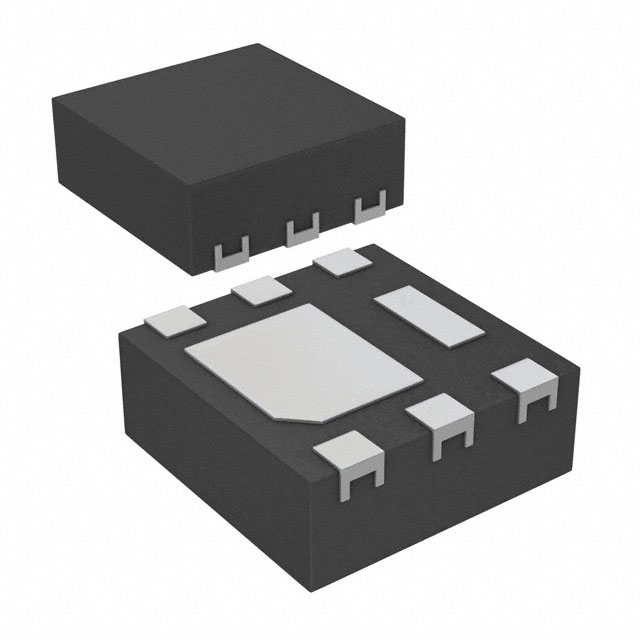

N-Channel 20 V 6A (Ta) 1.25W (Ta) Surface Mount 6-UDFNB (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 4A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Supplier Device Package | 6-UDFNB (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 410 pF @ 10 V |
