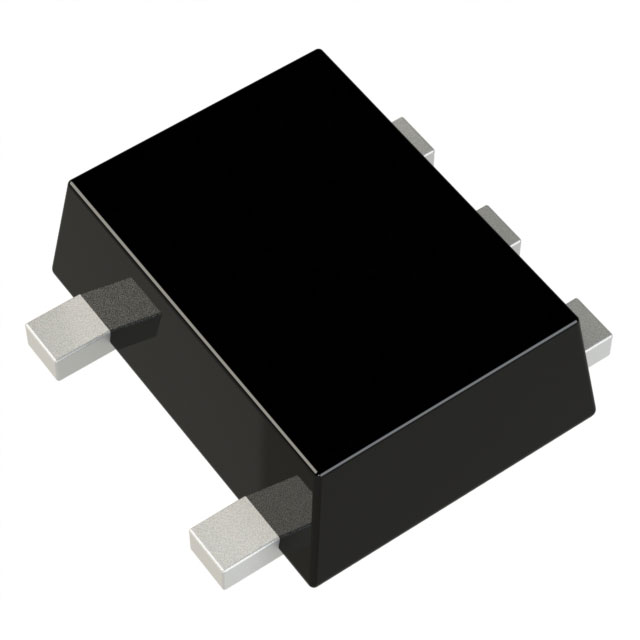

SSM5H90ATU,LF
MOSFET N-CH 20V 2.4A UFVManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 20 V 2.4A (Ta) 500mW (Ta) Surface Mount UFV
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 1.5A, 4V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Vgs(th) (Max) @ Id | 1.2V @ 1mA |
| Supplier Device Package | UFV |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 2.2 nC @ 4 V |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 10 V |
