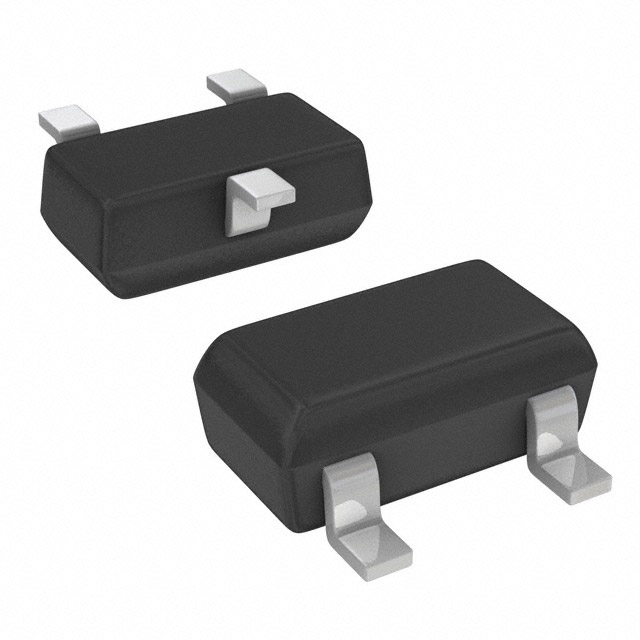

SSM3K7002KFU,LXH
SMOS LOW RON NCH IO: 0.4A VDSS:Manufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 400mA (Ta) 150mW (Ta) Surface Mount USM
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Supplier Device Package | USM |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
| Qualification | AEC-Q101 |
