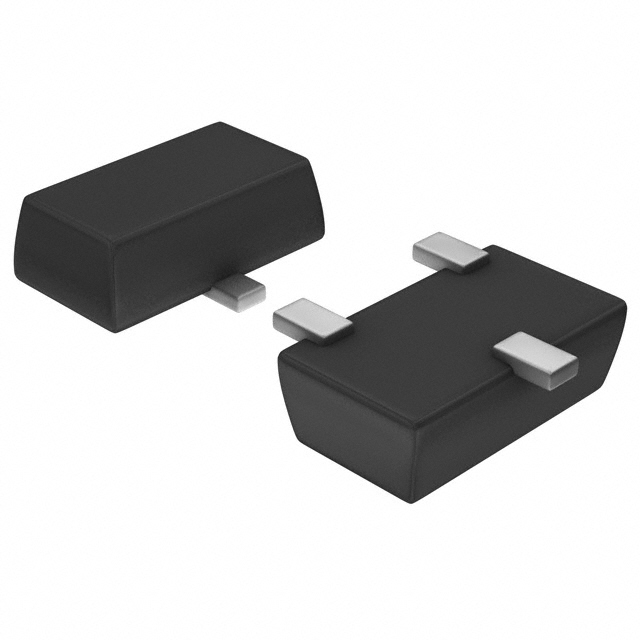

SSM3K376R,LF
MOSFET N-CH 30V 4A SOT23FManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 4A (Ta) 2W (Ta) Surface Mount SOT-23F
Additional Information
Series: U-MOSVII-HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-3 Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 2A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Supplier Device Package | SOT-23F |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | +12V, -8V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 2.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 10 V |
