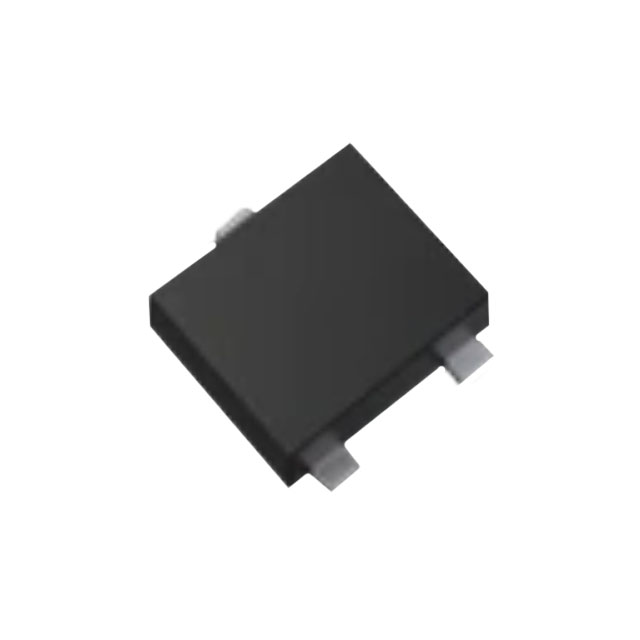

SSM3K361TU,LXHF
AECQ MOSFET NCH 100V 3.5A SOT323Manufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 3.5A (Ta) 1W (Ta) Surface Mount UFM
Additional Information
Series: U-MOSVIII-HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 69mOhm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 100µA |
| Supplier Device Package | UFM |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 430 pF @ 15 V |
| Qualification | AEC-Q101 |
