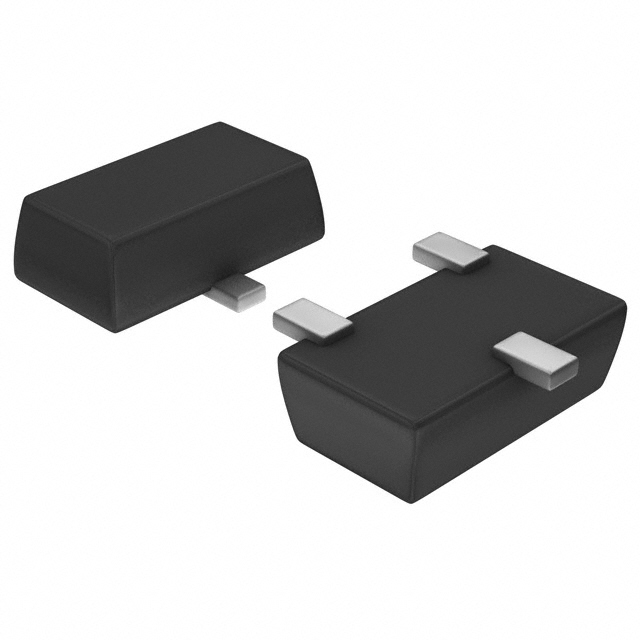

SSM3K357R,LF
MOSFET N-CH 60V 650MA SOT23FManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 650mA (Ta) 1W (Ta) Surface Mount SOT-23F
Additional Information
Series: À-MOSVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SOT-23-3 Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 650mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.8Ohm @ 150mA, 5V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Supplier Device Package | SOT-23F |
| Drive Voltage (Max Rds On, Min Rds On) | 3V, 5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.5 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 12 V |
