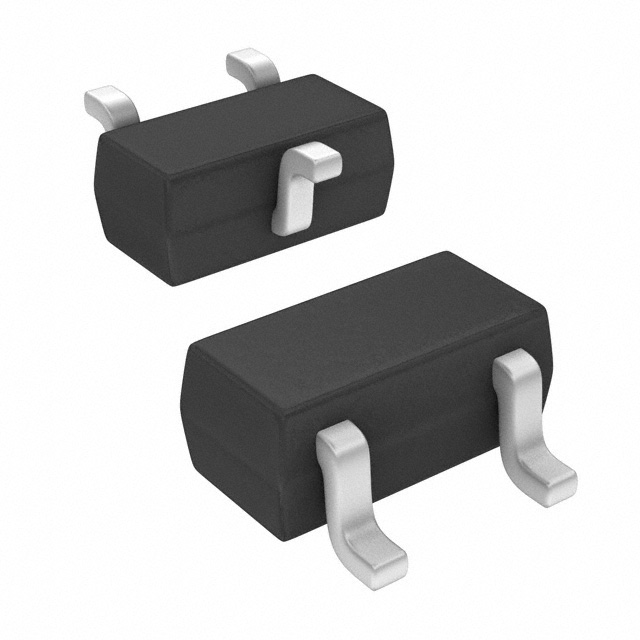

SSM3K15AFS,LF
MOSFET N-CH 30V 100MA SSMManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 100mA (Ta) 100mW (Ta) Surface Mount SSM
Additional Information
Series: U-MOSIIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SC-75, SOT-416 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Rds On (Max) @ Id, Vgs | 3.6Ohm @ 10mA, 4V |
| FET Feature | - |
| Power Dissipation (Max) | 100mW (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 100µA |
| Supplier Device Package | SSM |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 13.5 pF @ 3 V |
