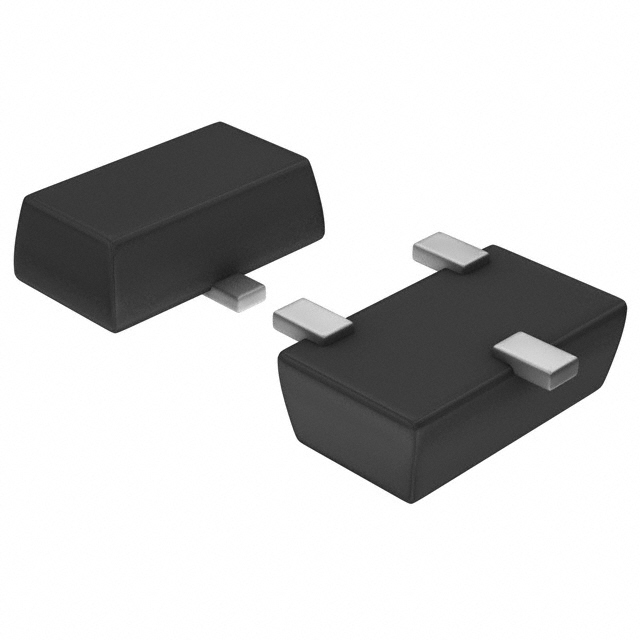

SSM3J374R,LF
MOSFET P-CH 30V 4A SOT23FManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 4A (Ta) 1W (Ta) Surface Mount SOT-23F
Additional Information
Series: U-MOSVIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-3 Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 71mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Vgs(th) (Max) @ Id | 2V @ 100µA |
| Supplier Device Package | SOT-23F |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | +10V, -20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.9 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 280 pF @ 15 V |
