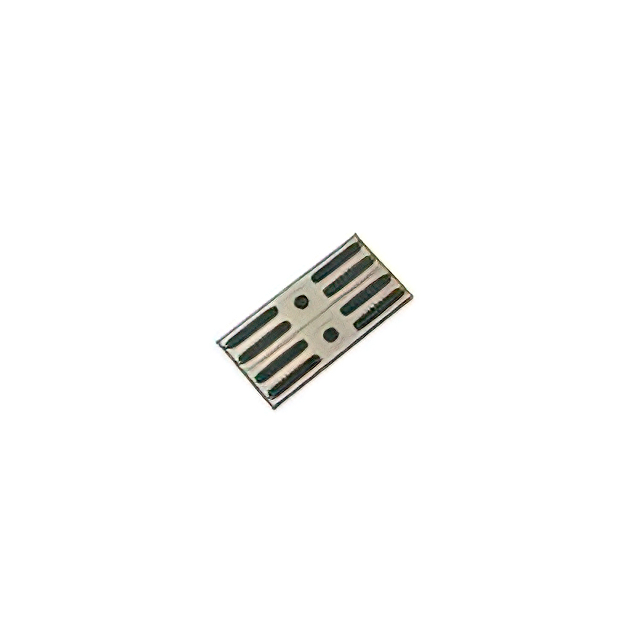

SSM10N954L,EFF
COMMON-DRAIN NCH MOSFET, 12V, 13Manufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 12 V 13.5A (Ta) 800mW (Ta) Surface Mount TCSPAC-153001
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 13.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 2.75mOhm @ 6A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta) |
| Vgs(th) (Max) @ Id | 1.4V @ 1.11mA |
| Supplier Device Package | TCSPAC-153001 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 4 V |
