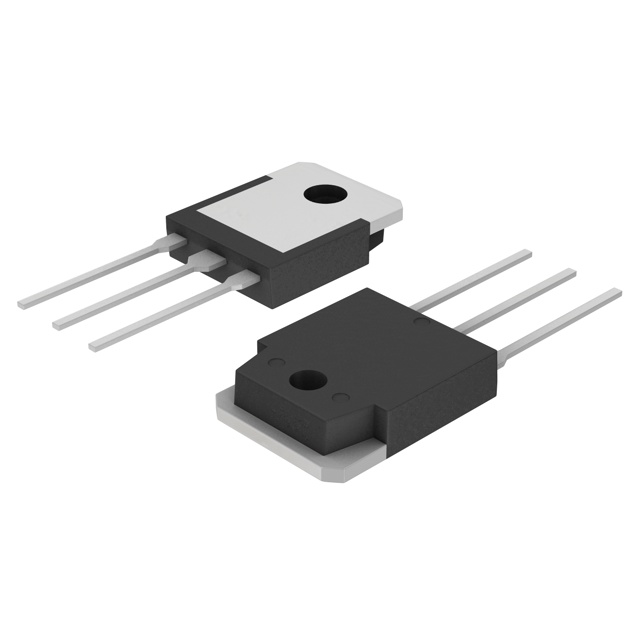

2SK3700(F)
MOSFET N-CH 900V 5A TO3PManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 900 V 5A (Ta) 150W (Tc) Through Hole TO-3P(N)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Last Time BuyPackaging: BulkDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 150W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | TO-3P(N) |
| Drain to Source Voltage (Vdss) | 900 V |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150 pF @ 25 V |
Request a Quote
