U1GWJ49(TE12L,F)
DIODE SCHOTTKY 40V 1A PW-MINIManufacturer: Toshiba Semiconductor and Storage
Categories: Single Diodes
Quality Control: Learn More

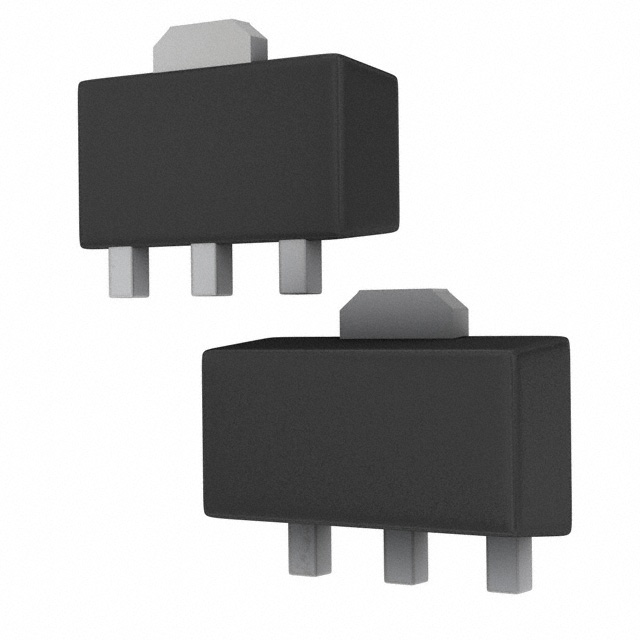

Toshiba Semiconductor and Storage U1GWJ49-TE12L-F- is a Schottky barrier diode designed for high-frequency rectification applications. This surface mount component, housed in a TO-243AA (PW-MINI) package, offers a maximum reverse voltage of 40V and an average rectified forward current of 1A. It exhibits a low forward voltage drop of 550mV at 1A and a reverse leakage current of 500µA at 40V. The U1GWJ49-TE12L-F- operates across a junction temperature range of -40°C to 125°C and is supplied on tape and reel. This diode is suitable for power supply circuits, switching power supplies, and automotive applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | PW-MINI |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
