DSF01S30SC,L3F
DIODE SCHOTTKY 30V 100MA SC2Manufacturer: Toshiba Semiconductor and Storage
Categories: Single Diodes
Quality Control: Learn More

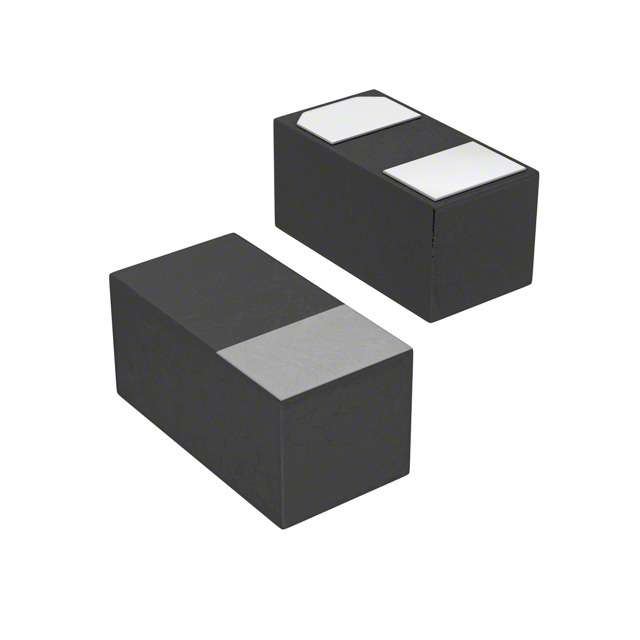

Toshiba Semiconductor and Storage DSF01S30SC-L3F is a Schottky diode designed for small signal applications. This component features a maximum DC reverse voltage of 30V and an average rectified forward current of 100mA. The forward voltage drop at 100mA is 500mV maximum. Typical reverse leakage current is 50µA at 30V. The device exhibits a capacitance of 9.3pF at 0V and 1MHz. It is offered in a compact SC2 package, specifically the 0201 (0603 Metric) footprint, suitable for high-density surface mount applications. The operating junction temperature range extends to 125°C maximum. This diode is commonly utilized in power management circuits, signal rectification, and general-purpose switching applications within the consumer electronics and industrial equipment sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | 9.3pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | SC2 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V |
