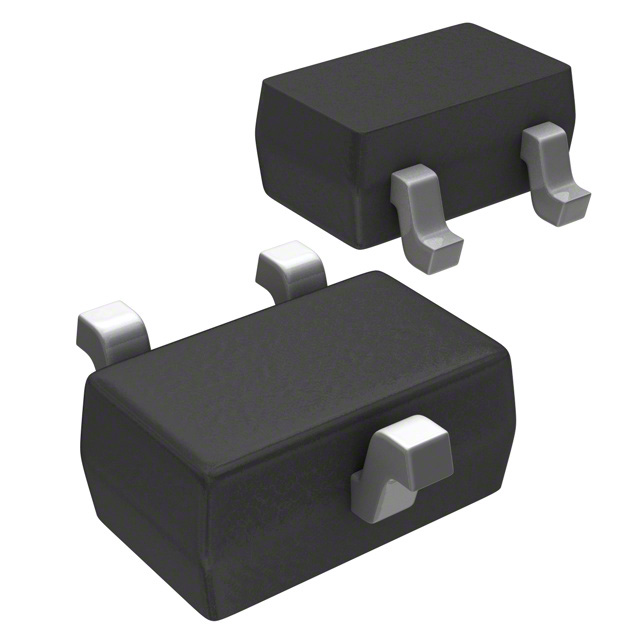

1SS370TE85LF
DIODE GEN PURP 200V 100MA SC70Manufacturer: Toshiba Semiconductor and Storage
Categories: Single Diodes
Quality Control: Learn More
Toshiba Semiconductor and Storage 1SS370TE85LF is a general-purpose diode designed for surface mount applications. This component offers a maximum DC reverse voltage of 200 V and a forward voltage of 1.2 V at 100 mA. It features an average rectified current (Io) of 100 mA and a low reverse leakage current of 1 µA at 200 V. The diode exhibits a capacitance of 3 pF at 0 V and 1 MHz, with a reverse recovery time (trr) of 60 ns. Packaged in an SC-70 (SOT-323) format on tape and reel, it operates at junction temperatures up to 125°C. This device is commonly utilized in industrial and consumer electronics for signal rectification and switching applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 3pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | SC-70 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
