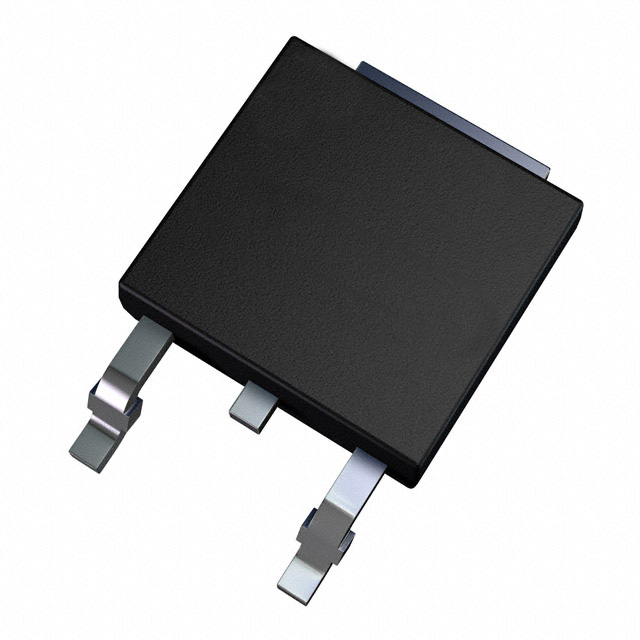

2SC3303-Y(T6L1,NQ)
TRANS NPN 80V 5A PW-MOLDManufacturer: Toshiba Semiconductor and Storage
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 80 V 5 A 120MHz 1 W Surface Mount PW-MOLD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 150mA, 3A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 1A, 1V |
| Frequency - Transition | 120MHz |
| Supplier Device Package | PW-MOLD |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 1 W |
