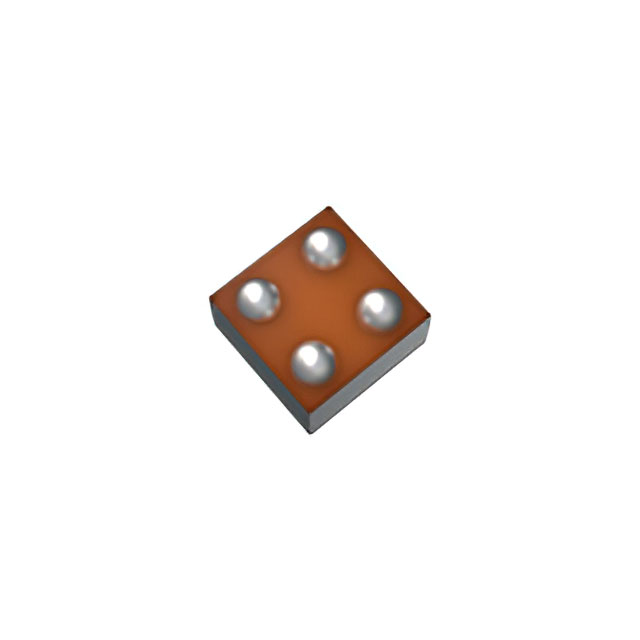

TCK126BG,LF
LOAD SWITCH IC, V=1.0V-5.5V, IOUManufacturer: Toshiba Semiconductor and Storage
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Toshiba Semiconductor and Storage TCK126BG-LF is a P-channel load switch designed for general-purpose applications. This component features a 1A maximum output current capability and a low on-resistance of 343mOhm typical. Operating within a voltage range of 1.0V to 5.5V, the TCK126BG-LF utilizes a slew rate controlled output for precise power management. The device is housed in a compact 4-WCSPG (0.65x0.65) package, suitable for surface mounting. Its ON/OFF interface allows for straightforward control, and the high-side output configuration simplifies power distribution designs. This load switch finds utility across various industries including consumer electronics and industrial automation. The TCK126BG-LF is supplied on tape and reel (TR) for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, CSPBGA |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 343mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 4-WCSPG (0.65x0.65) |
| Fault Protection | - |
