TCK108G,LF
IC PWR SWITCH P-CHAN 1:1 4WCSPManufacturer: Toshiba Semiconductor and Storage
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

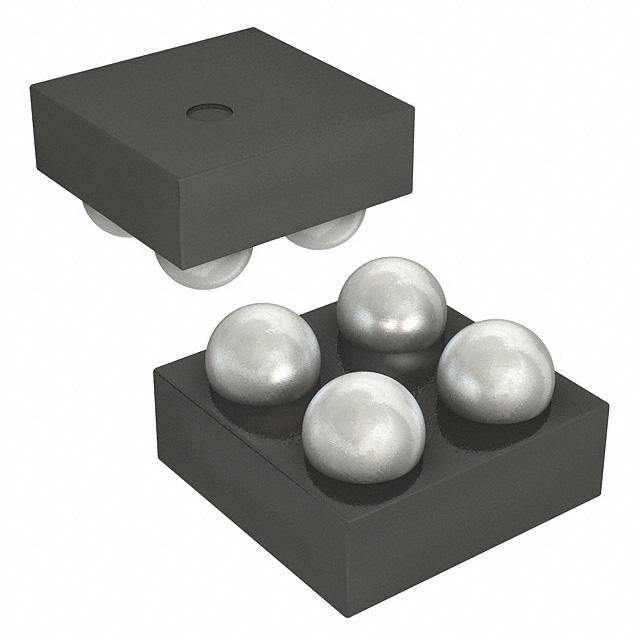

Toshiba Semiconductor and Storage TCK108G-LF is a P-channel power switch designed for general-purpose applications. This 1A device features a 1:1 input-to-output ratio and a low on-resistance of 49mOhm typical. The TCK108G-LF is housed in a compact 4-WCSP (0.79x0.79) package, suitable for surface mounting. Its output configuration is high-side, and it accepts a non-inverting input signal via an ON/OFF interface. Key features include slew rate control for managed turn-on characteristics. Operating across a temperature range of -40°C to 85°C (TA), this component is commonly utilized in portable electronics and consumer devices. The TCK108G-LF is supplied on tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 49mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 4-WCSP (0.79x0.79) |
| Fault Protection | - |
