TCK104G,LF
IC PWR SWITCH P-CHAN 1:1 6WCSPManufacturer: Toshiba Semiconductor and Storage
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

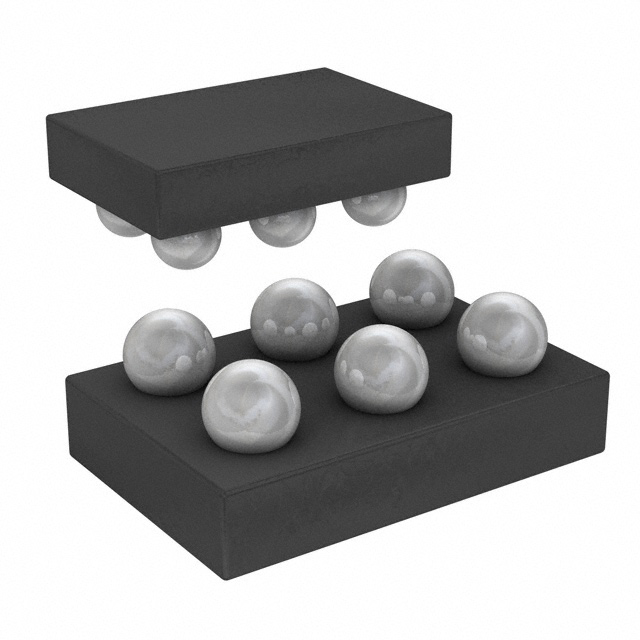

Toshiba Semiconductor and Storage TCK104G-LF is a high-side P-channel power switch designed for general-purpose applications. This 6-WCSPB packaged component offers a 1:1 input to output ratio and supports a load current of up to 800mA. Integrated fault protection includes fixed current limiting and over-temperature shutdown. Key features include load discharge capability and slew rate control. The TCK104G-LF operates across a voltage range of 1.1V to 5.5V and is suitable for surface mount assembly. Its compact 0.80x1.2mm WCSPB package makes it ideal for space-constrained designs in consumer electronics and portable devices. The ON/OFF interface simplifies control, and the device is rated for operation between -40°C and 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 800mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-WCSPB (0.80x1.2) |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
