TCK101G,LF
IC PWR SWITCH P-CHANNEL 1:1 6BGAManufacturer: Toshiba Semiconductor and Storage
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Toshiba Semiconductor and Storage TCK101G-LF is a P-channel power switch with a 1:1 input-to-output ratio. This general-purpose switch features a 1A maximum output current and a typical on-resistance of 50mOhm. The device integrates load discharge and slew rate control for enhanced performance. Fault protection is provided through over-temperature shutdown. The TCK101G-LF operates from a 1.1V to 5.5V load voltage and is housed in a compact 6-UFBGA package, suitable for surface mounting. Its ON/OFF interface simplifies control logic. Applications for this component include consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |

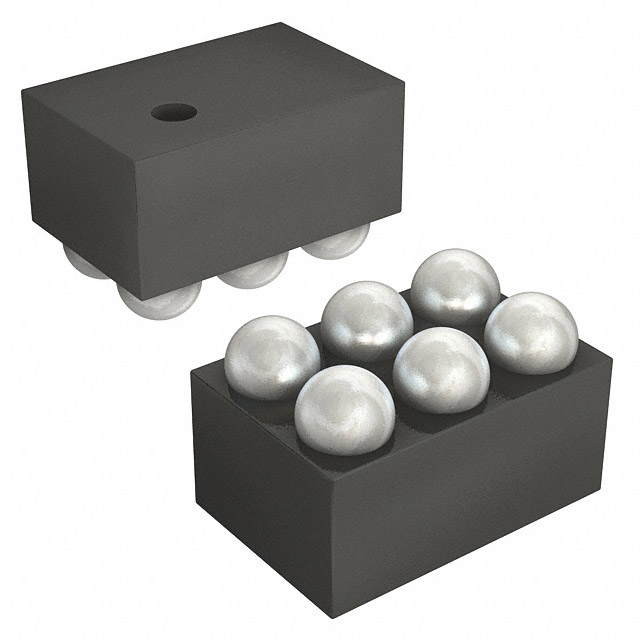

| Package / Case | 6-UFBGA |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-BGA |
| Fault Protection | Over Temperature |
