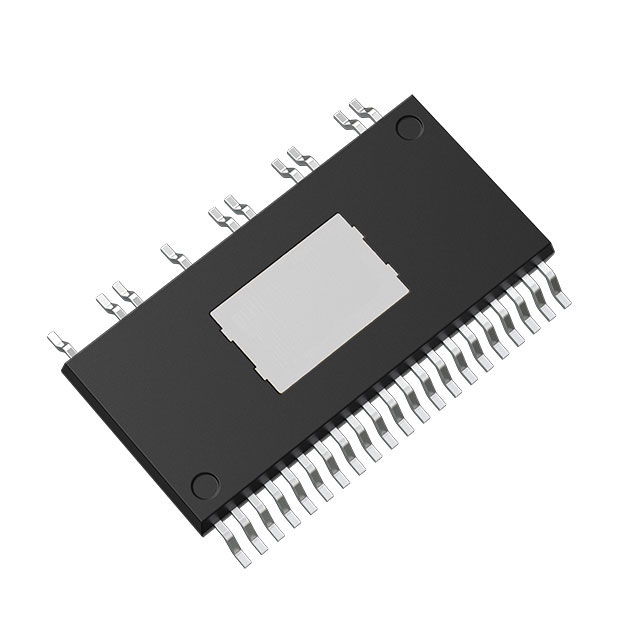

TPD4162F,LF
PB-F IPD IC HSSOP31 VBB(V)=600VManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver IGBT PWM P-HSSOP31-0918-0.80-002
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 62-SOP (0.331"", 8.40mm Width) Exposed Pad, 31 Leads |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 700mA |
| Interface | PWM |
| Operating Temperature | -40°C ~ 135°C |
| Output Configuration | High Side |
| Voltage - Supply | 13.5V ~ 17.5V |
| Applications | General Purpose |
| Technology | IGBT |
| Voltage - Load | 50V ~ 450V |
| Supplier Device Package | P-HSSOP31-0918-0.80-002 |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
