TC78B015AFTG,EL
IC MOTOR DRIVER 36WQFNManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TC78B015AFTG-EL is a multiphase motor driver IC designed for Brushless DC (BLDC) and stepper motor applications. This CMOS device features serial interface and PWM control, offering a flexible solution for motor control systems. With a load voltage capability of 36V and a supply voltage range of 6V to 30V, it supports demanding motor drive requirements. The output configuration includes three half-bridges, capable of delivering up to 3A of output current. Its 36-VQFN (5x5) package with an exposed pad ensures efficient heat dissipation for surface mount applications. The TC78B015AFTG-EL is suitable for general-purpose applications across various industries requiring precise motor control, operating within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

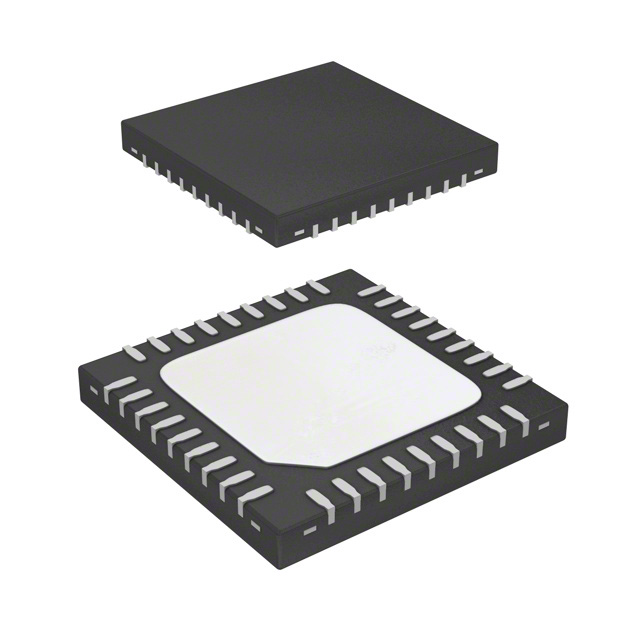

| Package / Case | 36-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | 3A |
| Interface | PWM, Serial |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 6V ~ 30V |
| Applications | General Purpose |
| Technology | CMOS |
| Voltage - Load | 36V |
| Supplier Device Package | 36-VQFN (5x5) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
